Onboard monitoring.
Battery, tanks and system at a glance.
Onboard monitoring shows the state of battery, tanks and electrical system: battery monitors with shunt measure current, voltage and state of charge, tank senders and gauges report water, waste water and fuel, P-BUS system monitors bring everything together, and low-voltage disconnects protect the battery. philippi develops and builds these devices in Germany, for 12 and 24 V systems in boats, yachts and expedition vehicles.
Categories. Measure, display, connect.
Battery
BLS and BTM2 battery monitors, LTM for lithium, SHE 348 shunt up to 300 A, also for 48 V.
Tank senders
TDS/TDN 200 tank probes, TGW, TGT and TRS 130 tank senders, Gobius sensors for external mounting.
P-BUS and PCU
PSS, PSM3 and PSL system monitors bring all measuring points together, the PCU switches and monitors centrally.
Protection
TSD 40 and THR 265 deep-discharge protection, DCA2 leakage current monitor, POS 6 navigation light monitoring.
Brands. Own production and range.
All products. 85 items.
Tank Probes TDS / TDN 200
from 359,00 €
Battery Monitor BLM2 Set
319,00 €
P-Bus Battery Management Shunt SHX 348
145,00 €
P-BUS System Monitor PSM3
369,00 €
Control Panel FAR
41,00 €
Navigation Light Monitoring Module POS 6 E for Panel Mounting
149,00 €
TGW water tank sender
from 126,70 €
TGT fuel tank sender
from 119,50 €
Tank Monitor 3.5" VTM 2
249,00 €
Ultrasonic tank sender UTV, contactless level measurement
115,00 €
Screw-in Tank Probe TDT-10-250
299,00 €
Tank Sensor Gobius C
389,00 €
Side-Mount Tank Sensor GOBIUS PRO
179,00 €
Tank Monitor 2.4" TCS
179,00 €
Flow sensor DFS 24
135,00 €
Tank sensor for waste water tanks TRS 130
81,90 €
Spacer ring UTS 25
26,90 €
Sound guide tube UFT
from 24,50 €
Universal Tank Interface UTI
89,00 €
Turotest waste tank gauge round 52 mm for ultrasonic tank sender UTV
56,00 €
Turotest tank gauge fuel/water round 52 mm
56,00 €
FAF holding tank monitor
49,00 €
Flange ring with seal GWF / GWW
10,90 €
Float switch DSW
22,90 €On-board monitoring from philippi – all components at a glance
On-board monitoring covers all the devices you use to check the condition of your electrical system – from the battery and tanks to networked system monitoring. philippi develops and manufactures these components in its own factory in Germany, designed for permanent use on boats, yachts and expedition vehicles.
In brief: A battery monitor measures voltage, current and state of charge via a shunt, tank senders report the levels, and the P-Bus system brings all values together on one system monitor. First choose the monitor that suits your installation, then the senders for your tanks.
Battery monitors & battery computers Battery monitors show the voltage, current, state of charge and remaining capacity of your on-board battery in real time. Models such as the BTM2, the BLS and BLM2 sets or the LTM for lithium batteries deliver accurate values and warn of deep discharge early – the basis for a reliable power supply on board.
Tank monitors & tank sensors For tank monitoring of fresh, grey and black water and fuel, displays such as the VTM 2 and TCS are available together with matching tank sensors (e.g. TGW for water, TGT for fuel and the TDS/TDN tank probes). This keeps all fill levels in view at all times.
P-Bus system monitoring The networked P-Bus system connects all measuring points into one central monitoring system. System monitors such as the PSL, PSL Plus, PSM3 and the secondary monitor PSS, supplemented by shunts (SHX 348, SHX 348-L, SHX 648, SHX 300-L) and interfaces, turn individual readings into complete, coordinated energy management.
Deep discharge protection & safety Components for deep discharge protection and devices such as the DCA2 fault current monitor protect batteries and the electrical system from damage and increase safety on board.

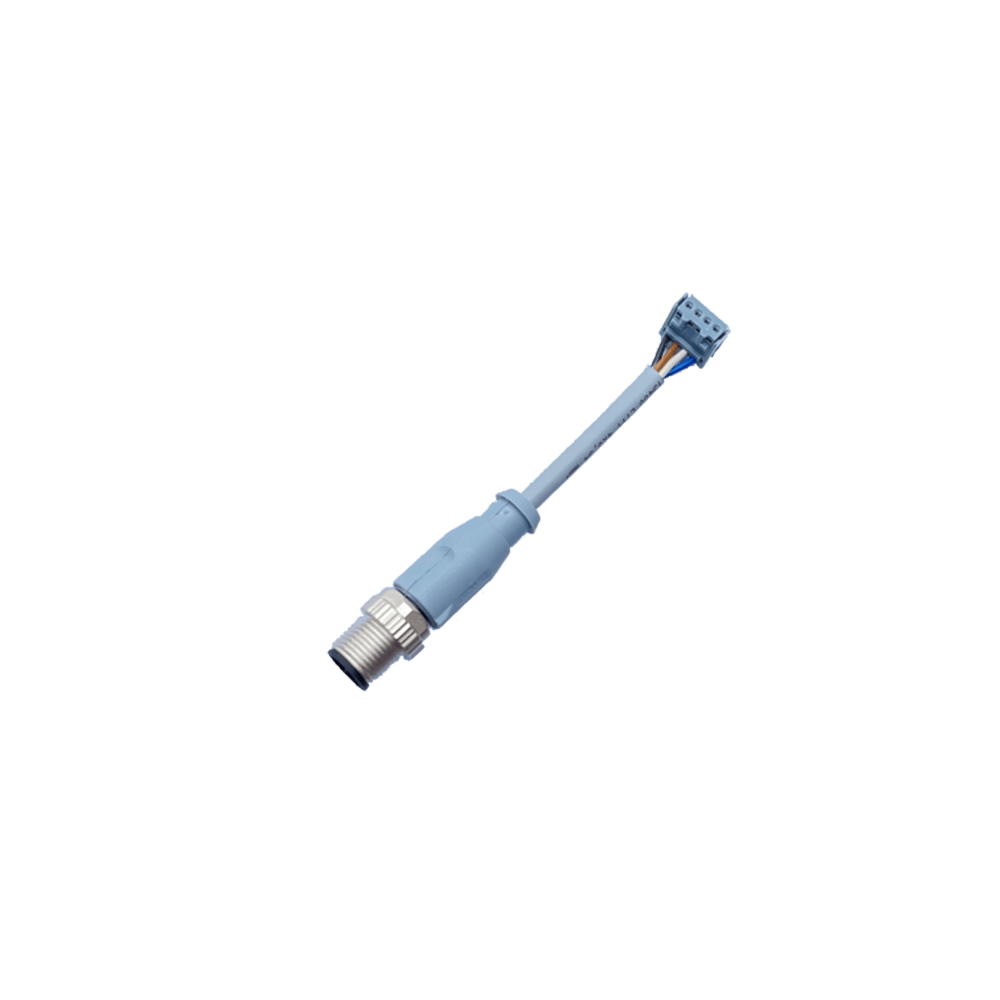

Accessories & interfaces NMEA 2000 cables, connection rails and flange rings complete the range and make it easy to integrate into your existing system.
Not sure which solution suits your system? Our team will advise you personally – from planning to the finished installation.
Questions about on-board monitoring.
What belongs to onboard monitoring?
All devices that measure and display the state of the electrical system: battery monitors with shunt for voltage, current and state of charge, tank monitors with matching sensors for water, waste water and fuel, P-Bus system monitors that bring all measuring points together, and protective components such as deep discharge protection and the DCA2 fault current monitor.
What is the difference between BLS and BTM2?
The BLS is the compact monitor with a 2.4-inch display for pure battery monitoring in 12 V and 24 V systems, without tank function and without NMEA 2000. The BTM2 has a 3.5-inch display, additionally monitors up to four tanks, passes its data to the chartplotter via NMEA 2000 and works from 12 to 48 V.
Which shunt fits which monitor?
The SHE 348 battery management shunt fits BLS, BTM, BTM2, BLM, BLM2, LTM, LBS and LBM and is installed in the negative cable of the leisure battery. It measures up to 300 A at capacities up to 50,000 Ah and is the only suitable shunt for 48 V systems. For a second current measurement, the SHP 348 is added.
Can I see battery and tanks on one display?
Yes. The BTM2 shows battery and tank values together on one display and is suitable for smaller systems. In larger systems, battery shunts, tank sensors and other measuring points come together in the P-Bus system on a system monitor; additional displays such as the PSS can be added at other locations.
Does onboard monitoring work in both boats and expedition vehicles?
Yes. All components are developed for permanent use in marine and vehicle applications and are manufactured in our own factory in Germany. Measuring principle and displays are the same; differences are mainly in the tank sensors and installation position.
