Distribution and protection

Bus bars for 12 V and 24 V.
Distribute positive and negative cleanly.

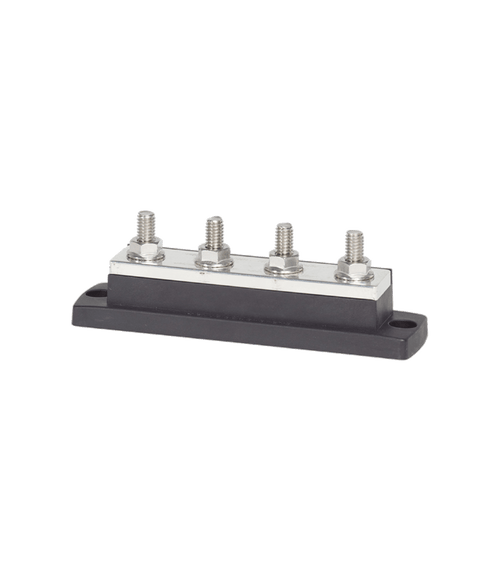

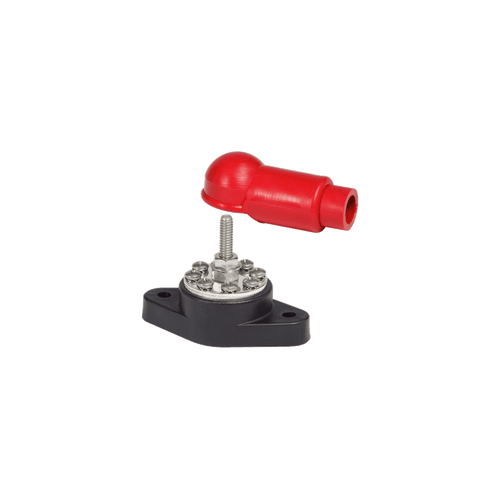

A busbar is a common connection point for several cables. Instead of stacking cable lugs on a battery terminal, positive or negative leads run to a copper bar. The electrical system becomes clearer, contact resistance drops and faults are found faster.

Positive and negative bars for both poles.

up to 250 A with the Power Install System.

Tinned copper protected against corrosion.

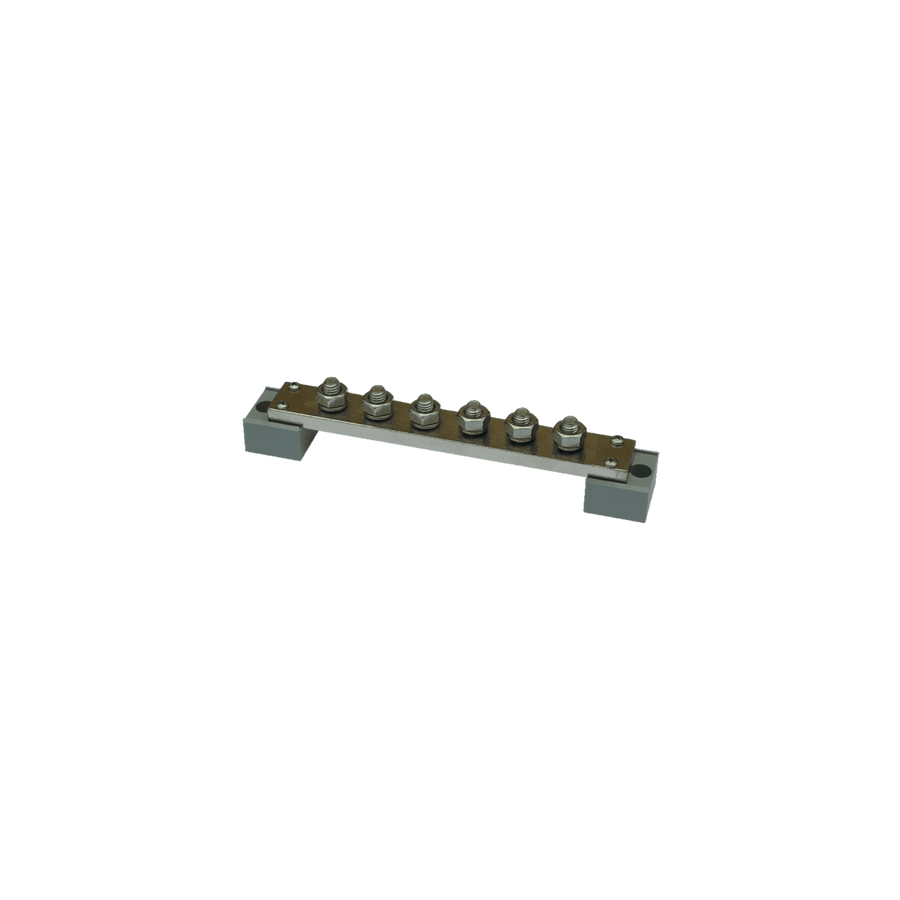

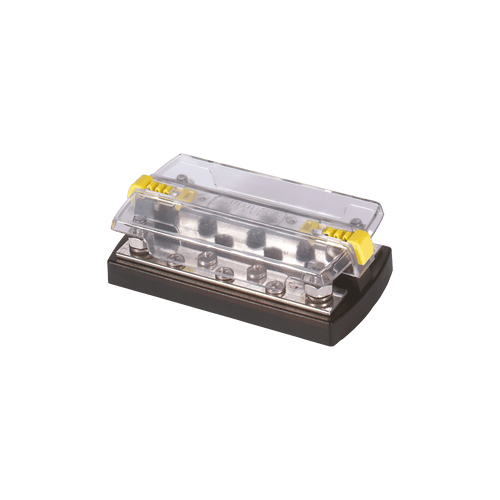

Positive busbar and negative busbar

The negative busbar brings all return conductors from consumers and charging sources together at one point. If the battery monitor's shunt sits between this bar and the negative terminal, it measures every current flowing into or out of the battery.

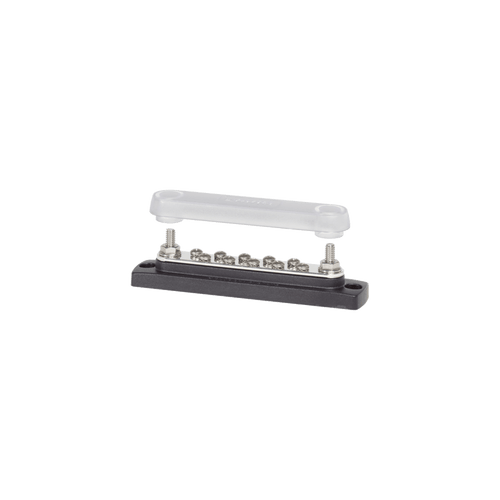

The positive busbar distributes current to the outgoing circuits. It always belongs behind a main fuse, and every outgoing circuit needs its own fuse matched to the cable cross-section. A cover protects against short circuits from tools or loose parts.

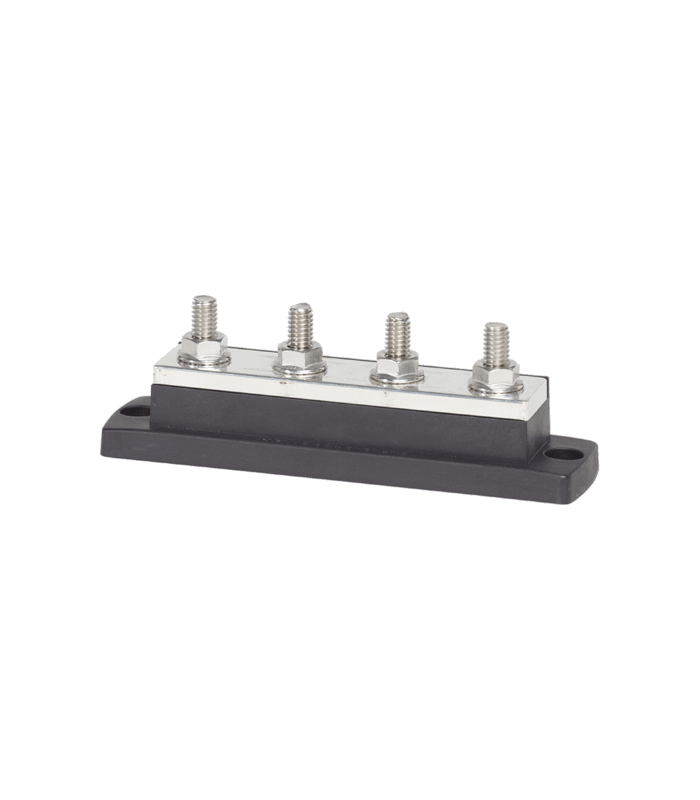

What matters when choosing

  • Continuous current: the bar must carry the total current of all consumers and charging sources running at the same time, with a margin.
  • Stud and screw size: it must match the hole of the cable lugs, otherwise the contact area is too small.
  • Number of terminals: plan free positions for later extensions.
  • Material: tinned copper conducts well and is protected against corrosion, which matters in humid and salty air.

For high currents: systems instead of single parts

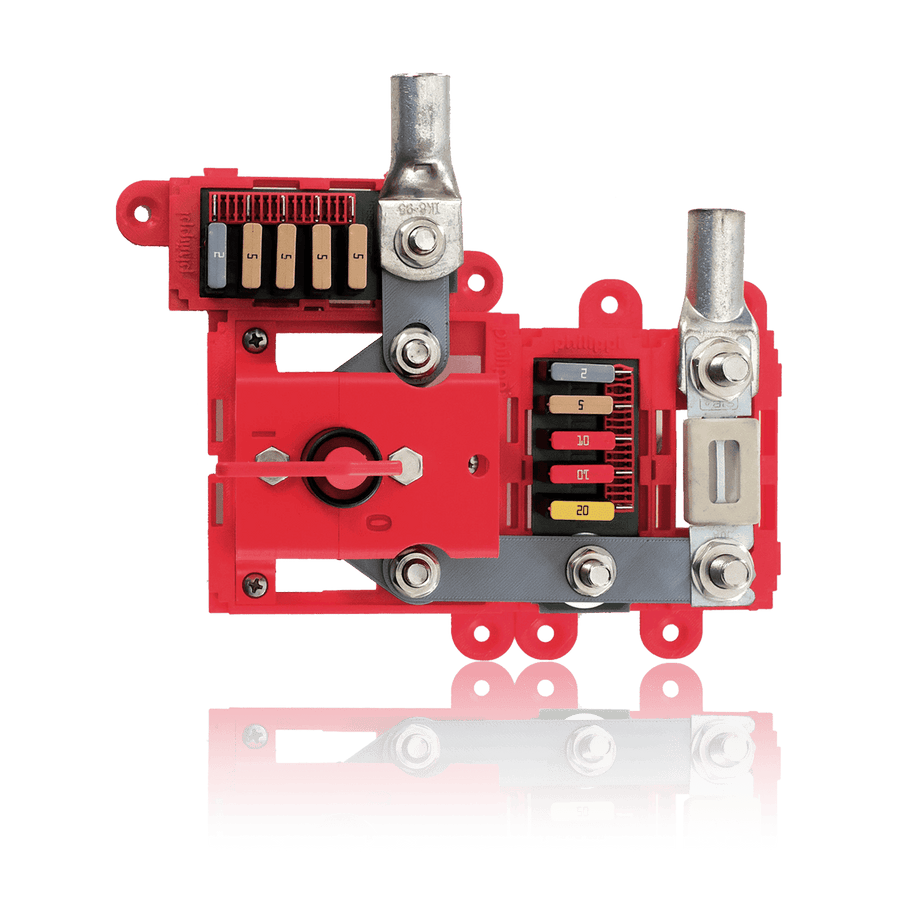

Where main switches, fuses and busbars sit close together, a bolted system pays off. In the philippi Power Install System, copper links connect the components directly without individually made-up cables, rated up to 250 A.

All busbars from 100 to 1000 A with prices are in the category Busbars & studs.

Matching products. From our range.

View all

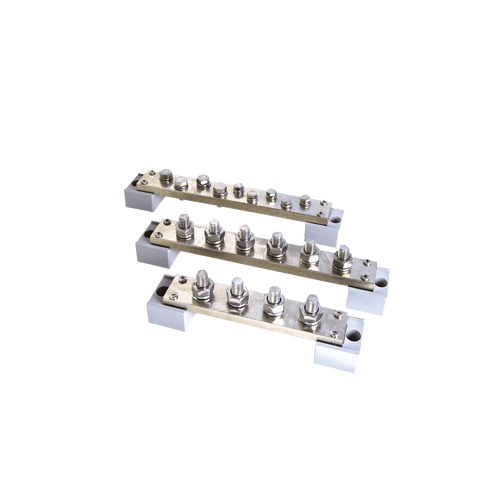

philippi busbar MSB 4
philippi

Negative busbar MSB 4

59,00 €

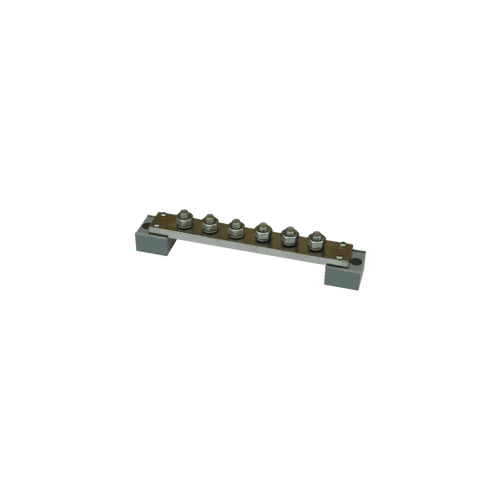

philippi busbar MSB 6
philippi

Negative busbar MSB 6

69,00 €
philippi busbar MSS 9
philippi

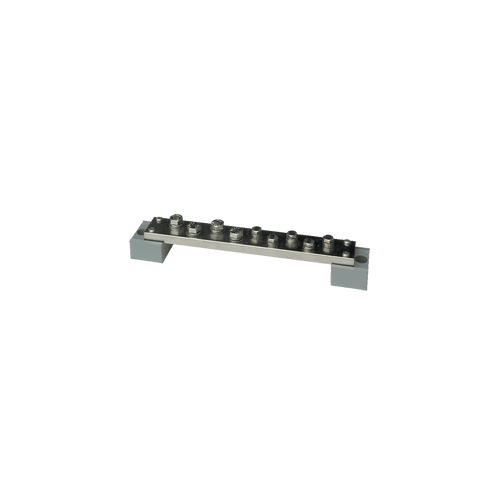

Busbar MSS 9
