Tank monitoring on board.
Measure and display the level.
Tank monitoring on board means measuring the level reliably, showing it where you need it and getting a warning in time, before a tank runs dry or the black water tank is full. Which tank sender fits depends on three questions: what is in the tank, how is the tank built and where should the level be displayed? The tank sender finder suggests the right sender; all senders and displays are listed under tank senders and tank gauges.
4 tanks directly on the PCU control unit.
No drilling with an external sensor.
Black water measured without contact.
Black water tank set
3/4 full alarm. According to the German black water tank regulation.
The TRS 130 tank sender reports 80 mm below the top of the tank to the FAF alarm panel, which gives a visual and audible warning. For 24 V, choose the FAF in the DC24V version on the product page.
-
Tank sensor for waste water tanks TRS 130Tank sender for the full alarm81,90 €
-
49,00 €
Together 130,90 €
incl. VAT, free shipping from €250
Chartplotter set
Battery and tanks on the plotter. Via NMEA 2000.

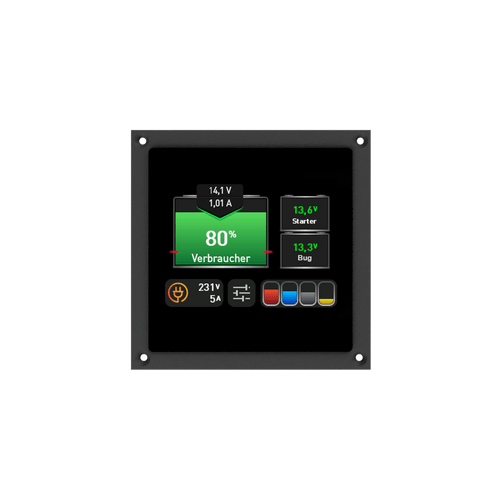

The BTM2 battery and tank monitor passes battery and tank data to compatible chartplotters. For this you also need the N2K cable.
-
Battery Tank Monitor BTM2Battery and tanks on one display285,00 €
-
NMEA2000 Adapter Cable N2K CableConnection to the NMEA 2000 network49,00 €
Together 334,00 €
incl. VAT, free shipping from €250
Matching products. From our range.
Which tank sender for which tank?
The right tank sender depends first on what is in the tank. For petrol, only the TGT immersion tube sender and the Gobius C are suitable. If the tank must not be drilled, the Gobius C measures from outside through the tank wall.
| Tank contents | Suitable tank senders | Not intended |
|---|---|---|
| Fresh water | TGW, UTV, TDS/TDN 200, TDT-10-250, Gobius C | – |
| Grey water and waste water | TGW, UTV, TDS/TDN 200, TDT-10-250, Gobius C | – |
| Black water | TGW, UTV, TDS/TDN 200, TDT-10-250, Gobius C; three-quarter full alarm with TRS 130 and FAF alarm panel | TGT |
| Diesel | TGT, TDS 200, TDT-10-250, Gobius C | UTV, TDN 200 |
| Petrol | TGT, Gobius C | UTV, TDS/TDN 200, TDT-10-250 |
Full or empty alarm only: Gobius Pro, RSW or DSW. For display: one tank on the Fuel/Water 52 mm round gauge, up to three tanks on the TCS, up to four on the VTM 2, on the chart plotter via BTM2 or Gobius C NMEA 2000.
Tank senders: measuring methods at a glance
A tank sender is the sensor in or on the tank that measures the level and passes it to the display as an electrical signal. Common signals are resistance ranges such as 10–180 Ω or 240–33 Ω, voltage signals and the 4–20 mA current signal. The display converts the signal into percent or litres.
| Method | Suitable for | Installation |
|---|---|---|

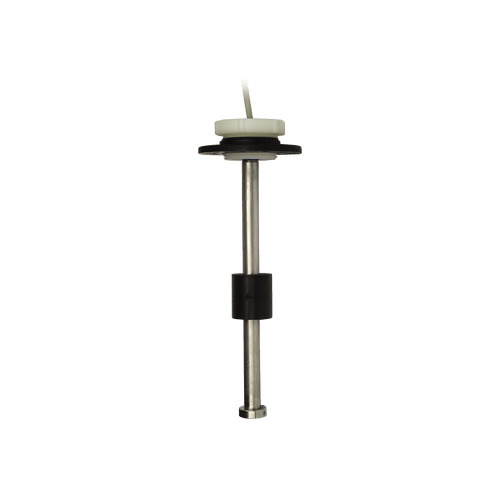

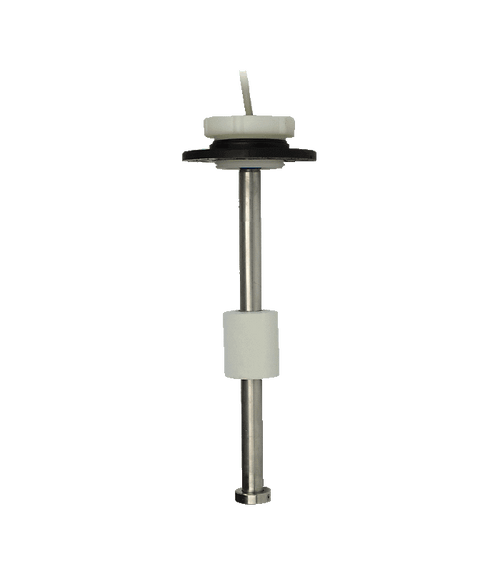

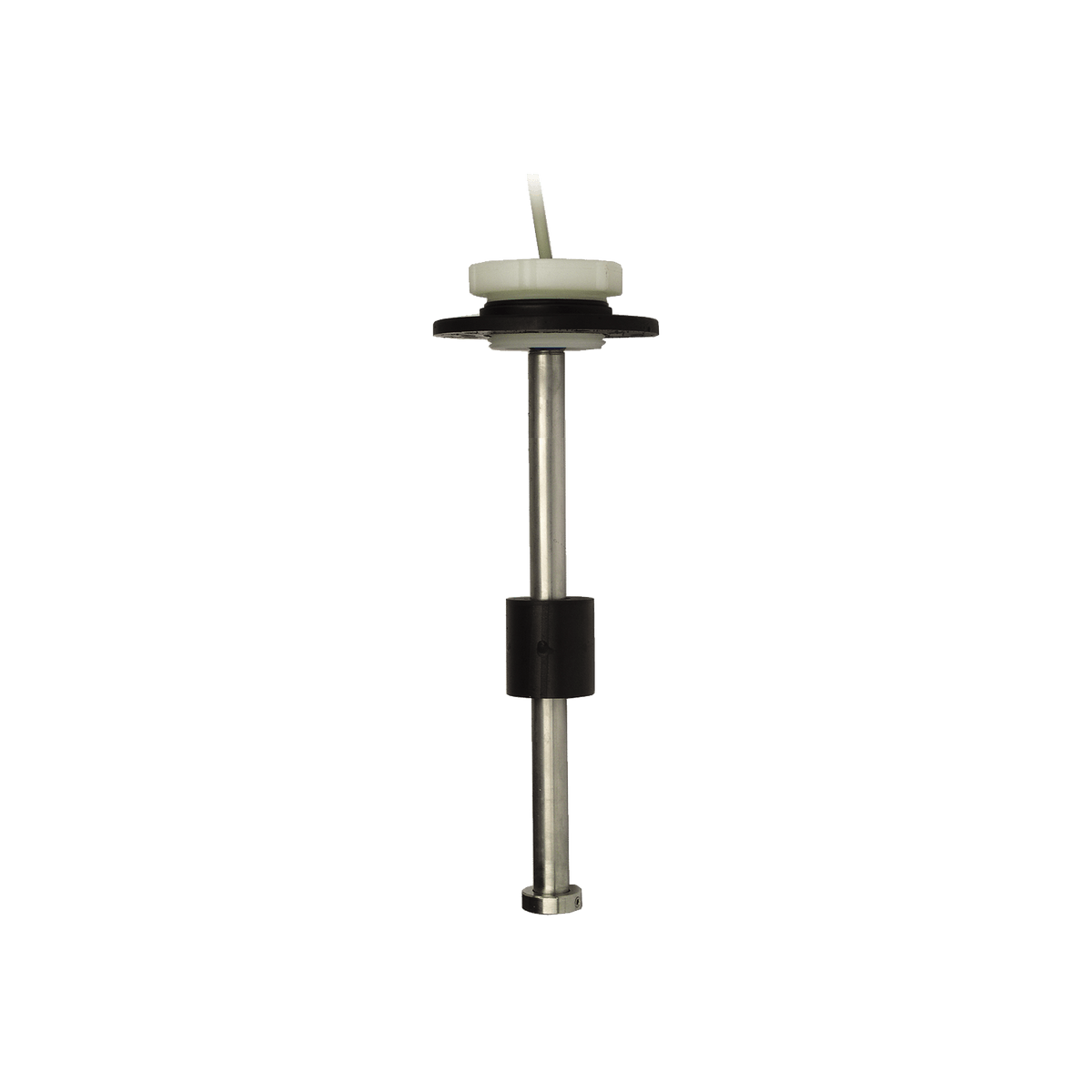

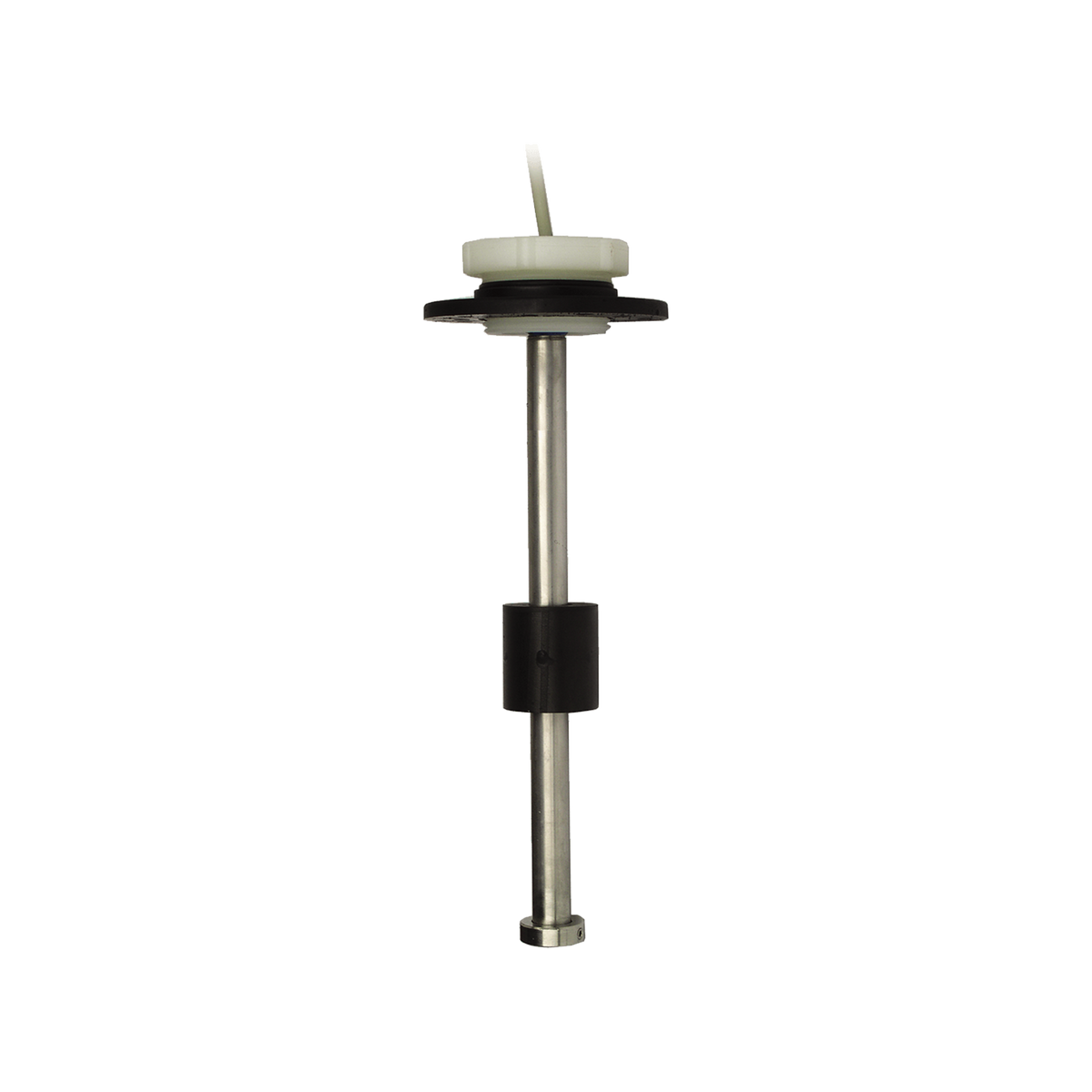

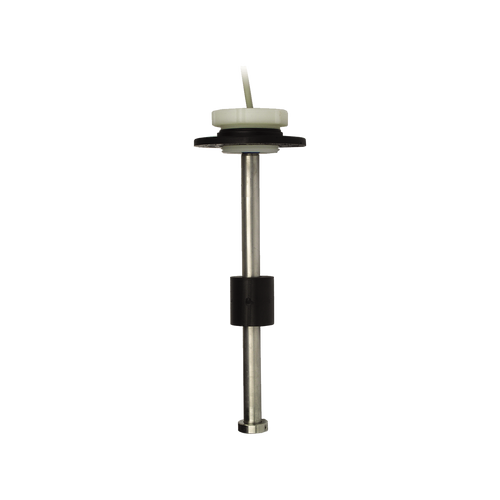

| Immersion tube sender (TGW, TGT) | TGW for fresh water, grey and black water, TGT for diesel and petrol | Vertically from above, removable for inspection |

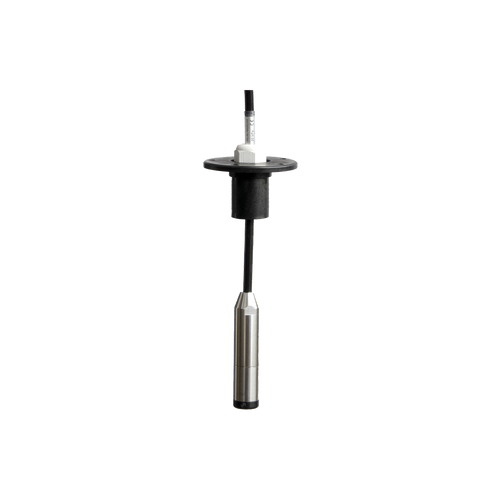

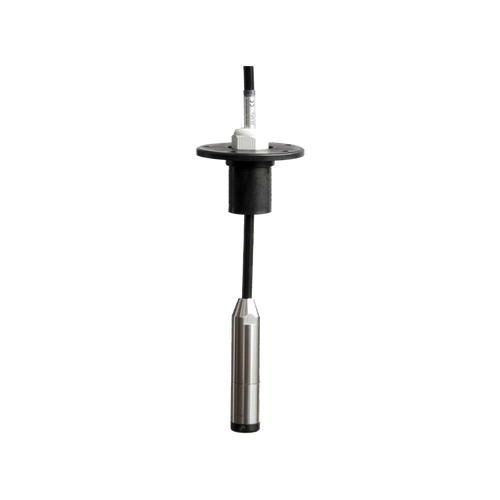

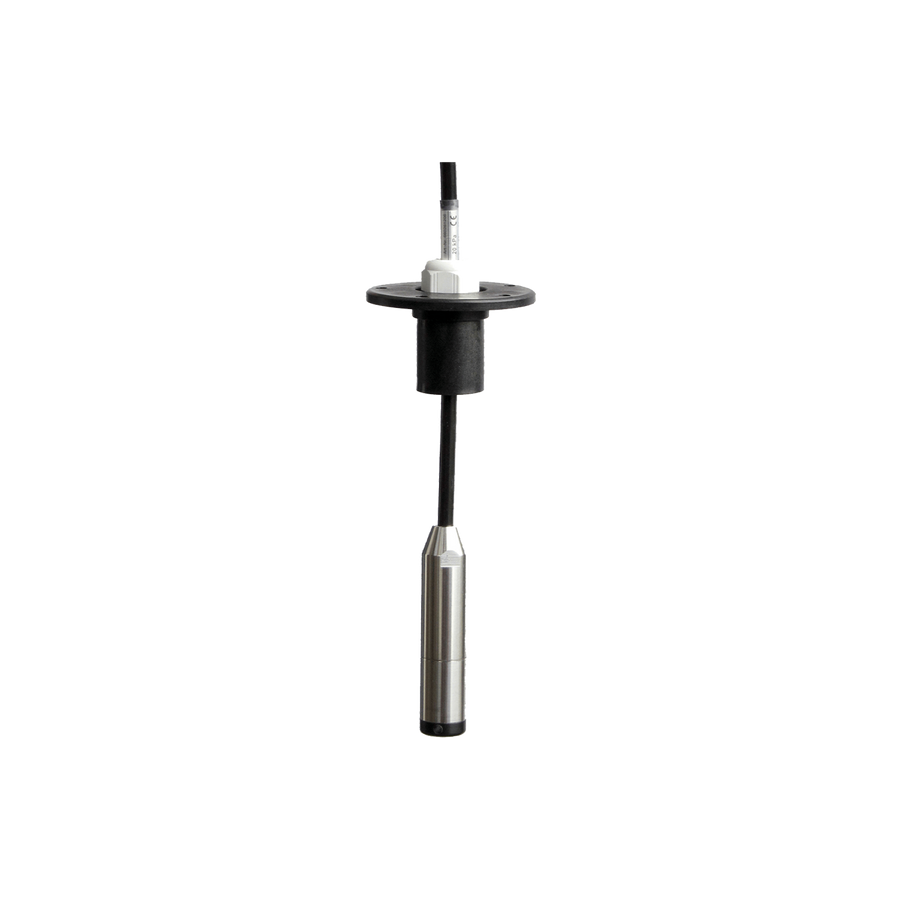

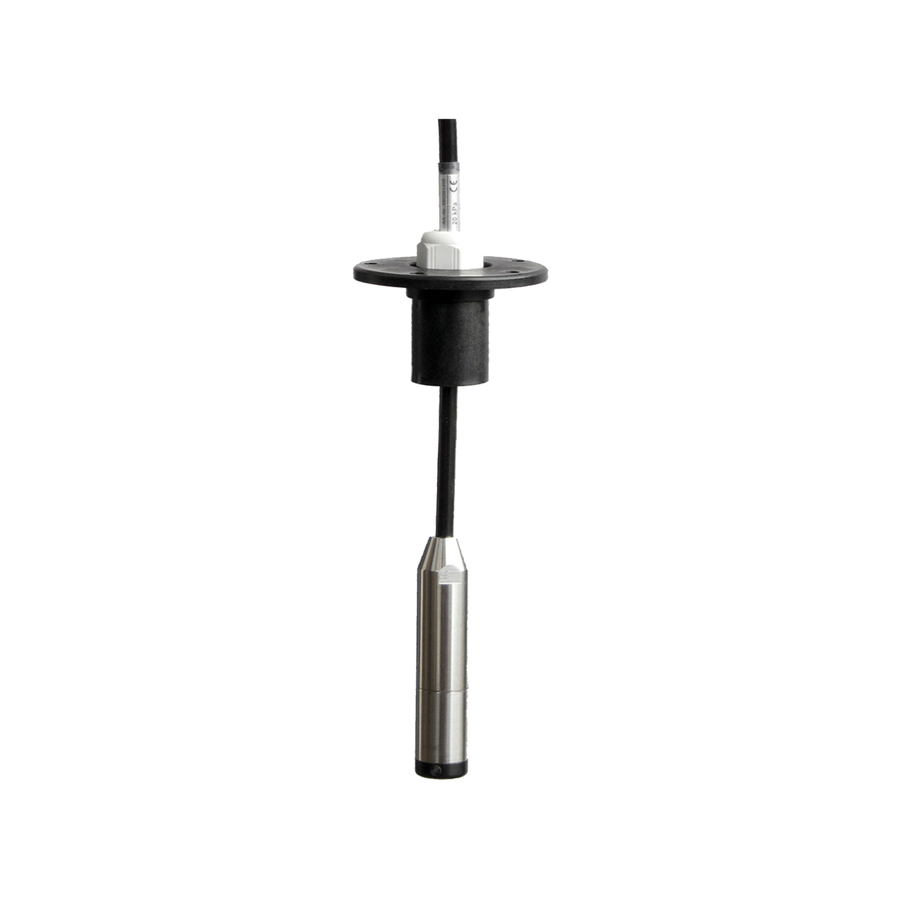

| Pressure probe (TDS, TDN 200, TDT-10-250) | Water, grey and black water; TDS and TDT also diesel; not for petrol | TDS/TDN lowered to the tank bottom, TDT screwed into a G1/2″ thread near the bottom |

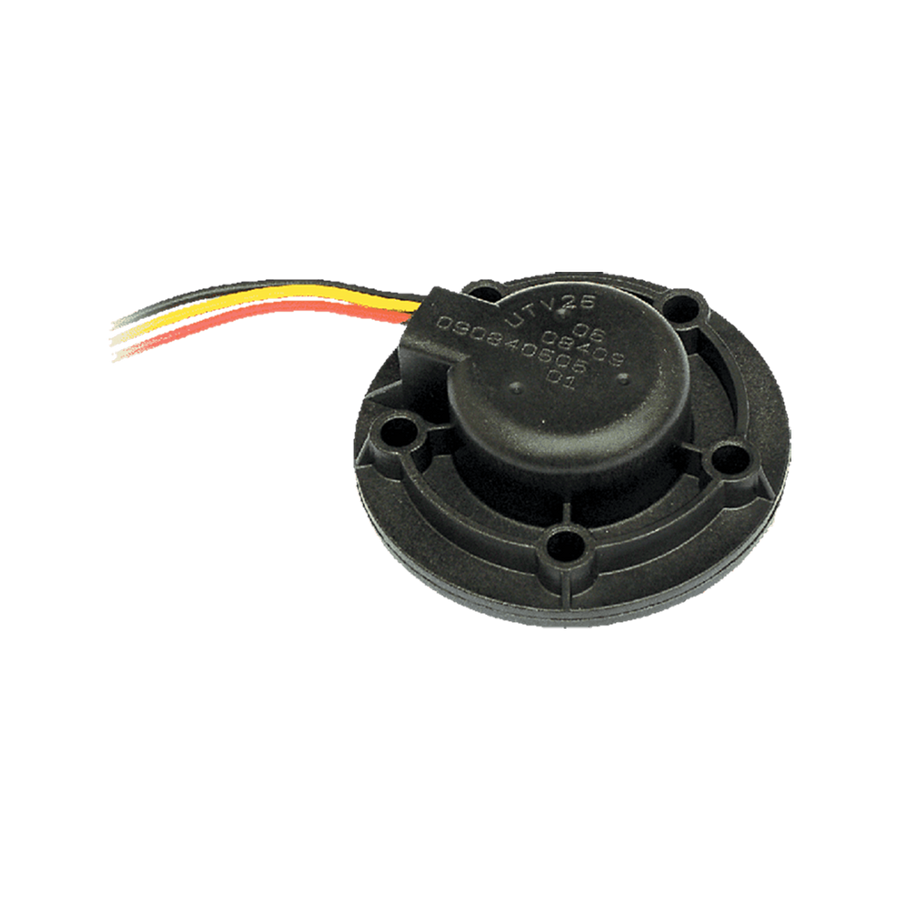

| Non-contact ultrasonic (UTV) | Fresh water, grey and black water; not for fuel | From above, no contact with the medium, hole at least 36 mm |
| Measuring through the tank wall (Gobius C) | All liquids | On top of the tank; no drilling on plastic tanks, in the 1 1/4″ flange on metal tanks |

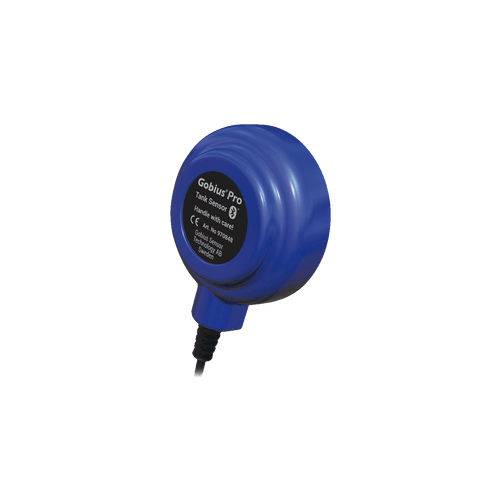

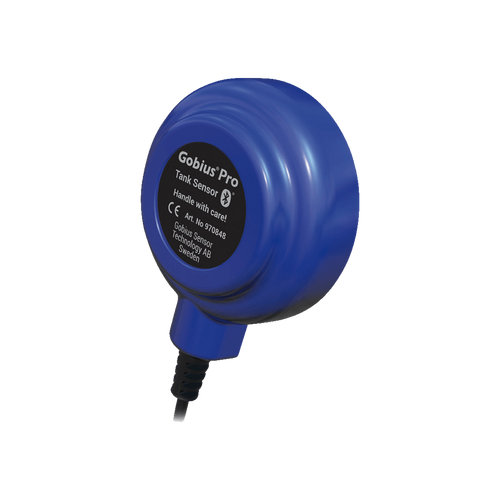

| Level switch (Gobius Pro, RSW, DSW) | Full or empty alarm, no continuous level | On the side or outside of the tank |
Monitoring the black water tank

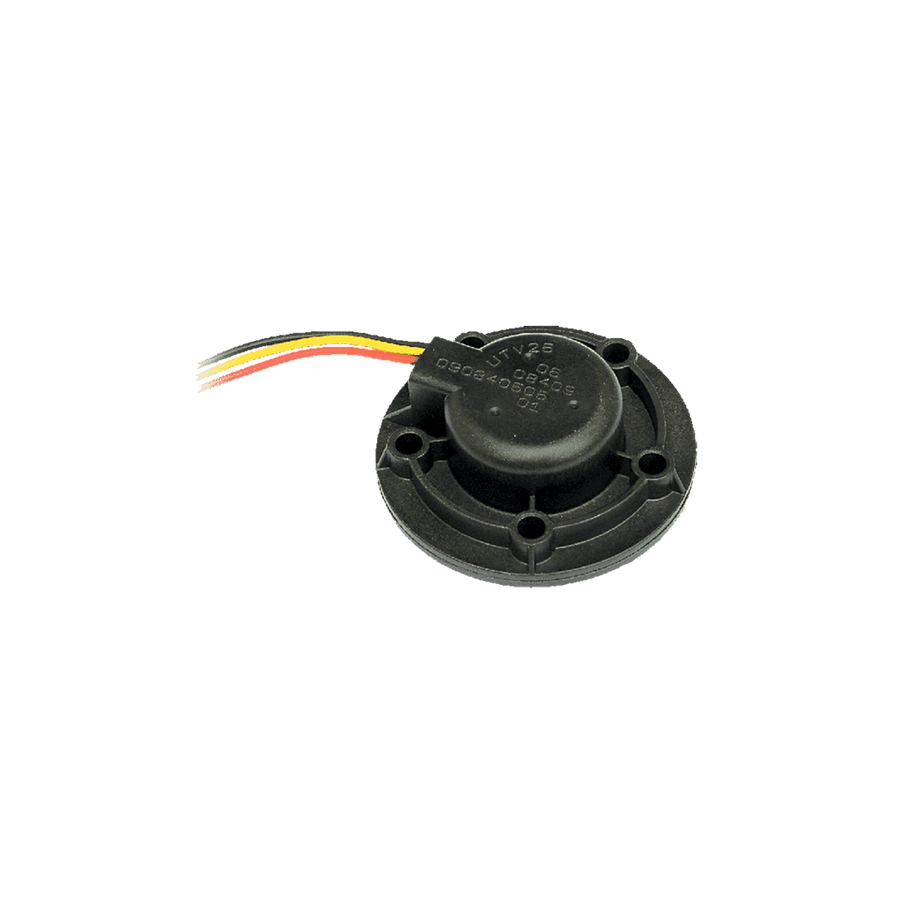

In the black water tank, the level is measured by the TGW immersion tube sender, the UTV ultrasonic probe, the TDS and TDN 200 pressure probes, the TDT-10-250 screw-in probe or the Gobius C. The TGT fuel sender is not intended for this.
For the three-quarter full alarm required by the German black water tank regulation, there is the TRS 130 tank sender. It signals 80 mm below the top of the tank to the FAF alarm panel, which warns visually and acoustically. You acknowledge the buzzer with a button while the display stays on. The FAF is available for 12 V and 24 V.

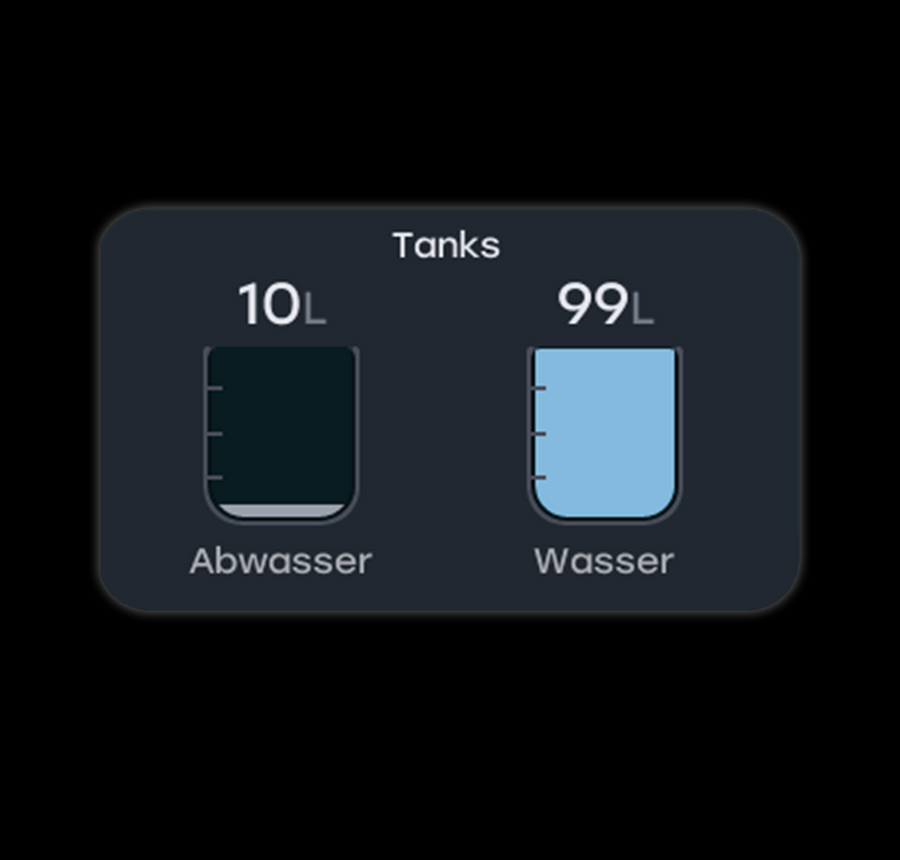

The tank gauge

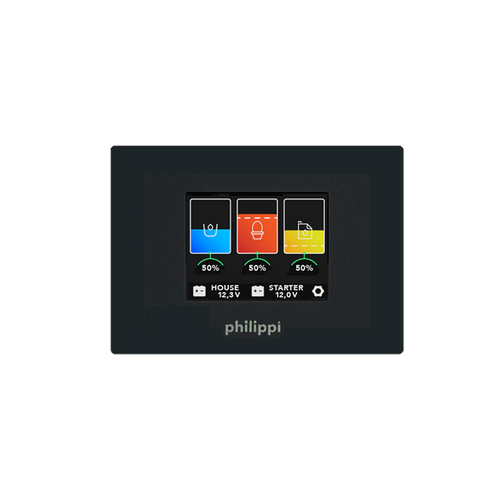

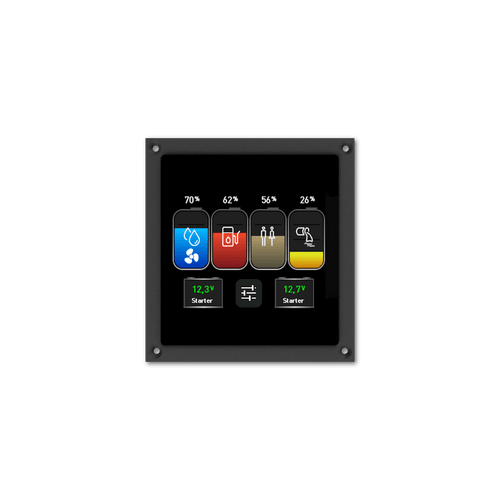

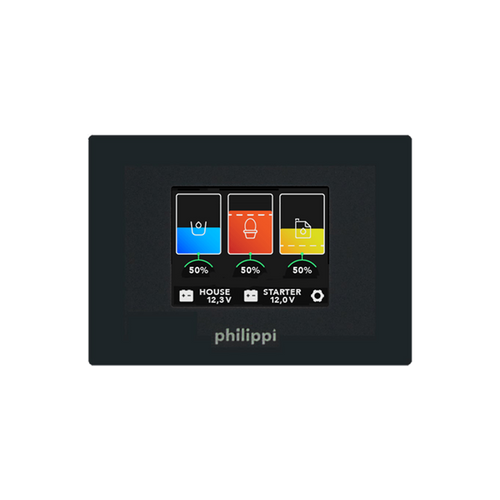

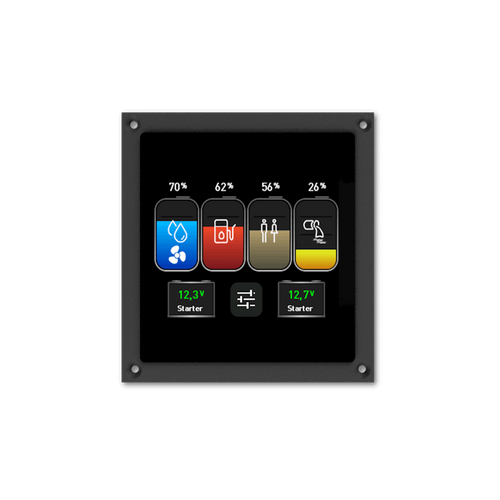

A single tank can be shown on the Fuel/Water 52 mm round gauge for TGT and TGW, fitted in the TAN 101 panel with rocker switch. For several tanks there are the TCS tank monitor with up to three tanks and the VTM 2 with up to four tanks, each with two battery voltages and adjustable alarm thresholds per tank.
To see battery and tanks on one display, use the BTM2 battery and tank monitor. It also passes the values to the chart plotter via NMEA 2000. Up to four tanks can be connected directly to the PCU control unit. The UTI universal tank interface connects pressure probes to existing analogue round gauges.
Installation and calibration
Tanks on board are rarely rectangular. For an accurate reading, calibrate the level in several steps: empty, quarter, half, three-quarters and full. This way even a wedge-shaped or moulded tank is displayed correctly. On the TCS you enter five level values from 0 to 100 % in the setup.
Ultrasonic probes only measure reliably when level. When heeling or in a seaway, the UFT sound guide tube improves the reading, and the UTS 25 spacer ring compensates for the 2.5 cm dead zone below the sensor.
Frequently asked questions. Answered briefly.
How do I monitor the level of my tanks on board?
You need a suitable tank sender and a display for each tank. The sender depends on the tank contents: the TGW immersion tube sender for water, waste water and black water, the TGT for fuel, a pressure probe or ultrasound for water, waste water and black water, Gobius C for tanks without a hole. Tank monitors such as TCS, VTM 2 or BTM2 show several tanks and warn at set limits.
Which tank sender is suitable for black water tanks?
Suitable for the level are the TGW immersion tube sender, the UTV ultrasonic probe, the TDS and TDN 200 pressure probes, the TDT-10-250 screw-in probe and the Gobius C. The TGT fuel sender is not intended for this. The 3/4-full alarm under the German black water tank regulation is provided by the TRS 130 sender together with the FAF alarm panel, which warns visually and acoustically.
Can I measure the level without drilling the tank?
Yes. The Gobius C is glued onto the top of the tank and, on plastic tanks, measures through the tank wall, without drilling and without any risk of leaks. On metal tanks it sits in the existing 1 1/4″ flange using a mounting adapter. It is set up via a Bluetooth app and connects to common analogue gauges.
How many tanks can a display show?
That depends on the device. A round gauge shows one tank. The TCS tank monitor shows up to three tanks, the VTM 2 up to four, both additionally two battery voltages. Up to four tanks can be connected directly to the PCU control unit, and four to the PSM3 and PSL system monitors via the CMT3 tank interface.
Why does my tank gauge show the wrong level?
Usually the tank is not evenly shaped and the display has not been calibrated. Calibrating in several steps, namely empty, quarter, half, three quarters and full, fixes this in most cases. With ultrasonic probes, heel, sea state or the dead zone directly below the sensor can also be the cause.
Can I see the tank values on the chart plotter?
Yes, via NMEA 2000. The BTM2 battery and tank monitor passes battery and tank data to compatible chart plotters; for this you also need the N2K cable. Alternatively, the NMEA 2000 version of the Gobius C tank sensor sends its level directly into the network, without an additional tank display.
