Blue Sea Systems 3-way fuse holder for stud fuses BS 5194
Blue Sea Systems · Fuse Distribution Blocks

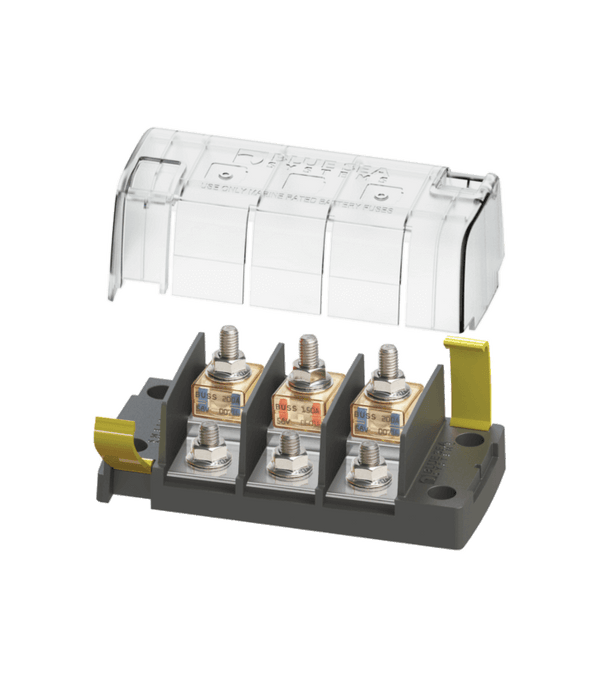

Blue Sea 3-pole fuse holder for bolt-type fuse BS 5194
The BS 5194 is an MRBF surface mount fuse holder for three SHB bolt-down fuses in an unbridged, independent design. Each of the three connections has its own input potential, allowing, for example, three separate battery chargers to be fused independently. A transparent plastic cover protects the connections from contact and moisture.
- Nickel-plated copper busbars
- Robust construction

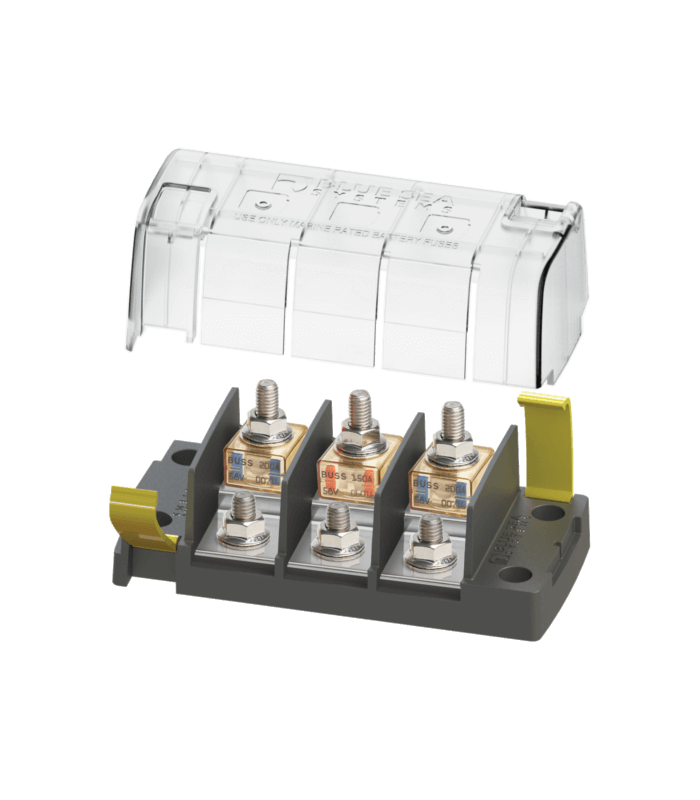

In detail. Blue Sea 3-pole fuse holder for bolt-type fuse BS 5194.
Advantages
- 3 independent input potentials for separate circuits
- Transparent, hinged cover for touch and moisture protection
- All connections accessible from one side for flexible wiring
- Labeling fields for easy circuit assignment
- Ignition-protected design when using MRBF fuses
- Robust 5/16"-18 connection studs for high currents
Technical Data & Compatibility
- SKU 700105194 (BS 5194), 3 connections, independent input potential
Technical data
| Feature | Value |
|---|---|
| Max. System voltage | 58V DC |
| Max. Current | 300A per block |
| Fuse type | MRBF bolt-down fuses (SHB), available from 30A to 300A |
| Connection studs | 5/16"-18 (8mm) |
Manufacturer and product safety
Navico Group Americas LLC (brand Blue Sea Systems)
N85 W12545 Westbrook Crossing
Menomonee Falls, WI 53051
USA
www.bluesea.com/contact
Safety information: see the operating manual and data sheet.
Frequently asked questions. Answered briefly.
What applications is the BS 5194 suitable for?
The BS 5194 is ideal for systems with multiple independent charging sources, such as three separate chargers or charge converters, which are to be individually fused without mutual interference.
