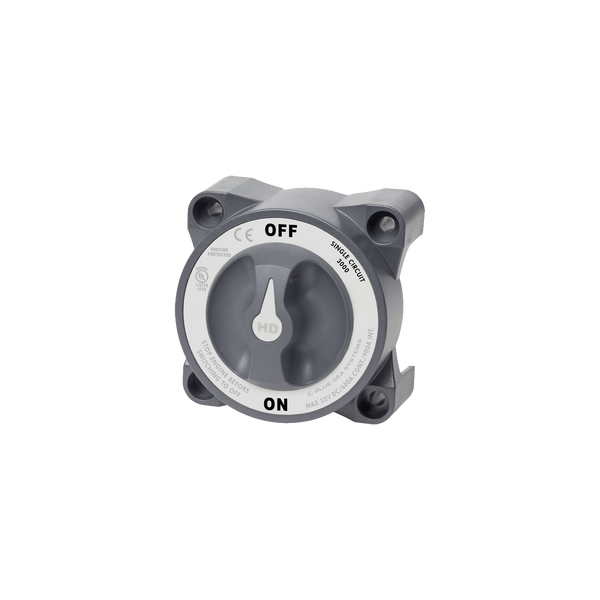

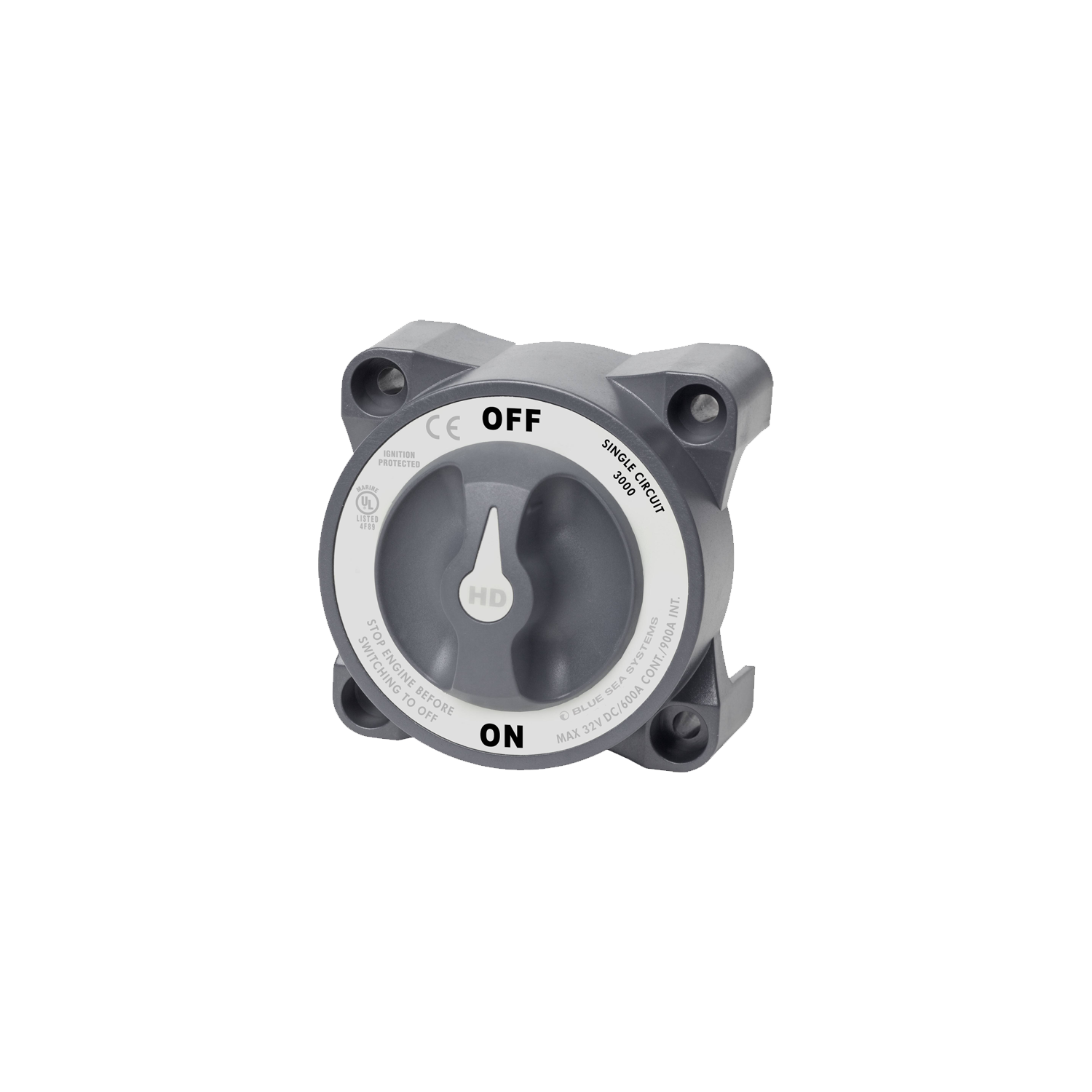

Blue Sea Battery main switch BHD 600
The battery main switch BHD 600 from the Blue Sea Systems HD series is designed for large diesel and petrol engines with high current demand. It switches a battery circuit completely ON or OFF and delivers a continuous current of up to 600 A – the highest power class in the Blue Sea battery main switch range.
- Nickel-plated copper busbars
- Robust construction
In detail. Blue Sea Battery main switch BHD 600.
Advantages
- Highest power class for large diesel engines with high current demand
- Tin-plated copper studs for maximum conductivity and corrosion protection

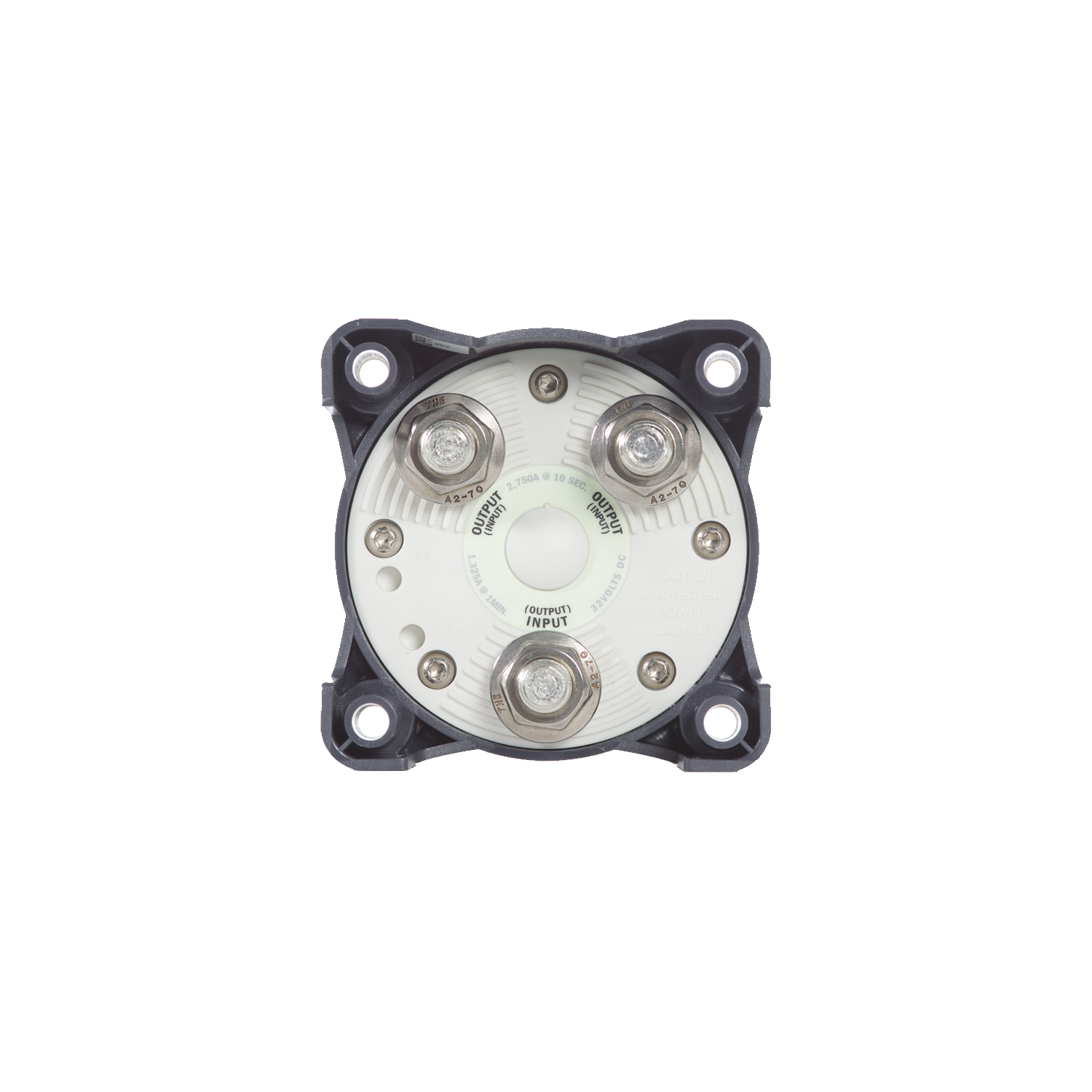

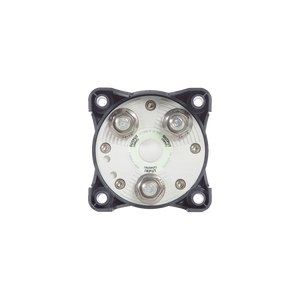

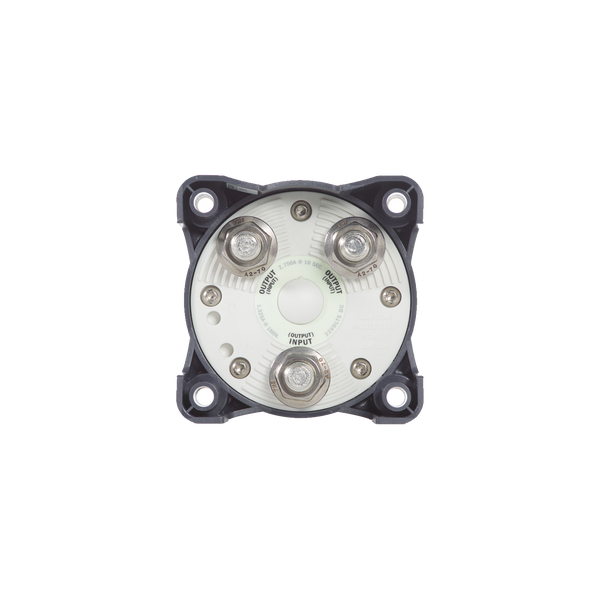

- Studs for 1/2" (12 mm hole) ring cable lugs for connecting large cable cross-sections
- One-piece stud design that does not loosen even under vibration
- Housing design allows both surface and rear mounting
Technical data
| Feature | Value |
|---|---|
| Switching function | Single Circuit ON-OFF – one battery circuit is switched on or off |
| Continuous current | 600 A |
| Peak current | 1,750 A / 30 sec. (intermittent 5 min.: 900 A) |
| Voltage | max. 32 V DC |
| Mounting | surface or rear mounting |
| Connections | studs for 1/2" (12 mm hole) ring cable lugs, cables up to 4/0 AWG (120 mm²) |
Manufacturer and product safety
Navico Group Americas LLC (brand Blue Sea Systems)
N85 W12545 Westbrook Crossing
Menomonee Falls, WI 53051
USA
www.bluesea.com/contact
Safety information: see the operating manual and data sheet.
Frequently asked questions. Answered briefly.
Which engines is the BHD 600 suitable for?
The BHD 600 was developed for large inboard diesel engines and powerful onboard electrical systems that require a significantly higher continuous current than the m or e series can deliver. With 600 A continuous current and 1,750 A peak current over 30 seconds, it reliably withstands even demanding starting processes of large engines.
