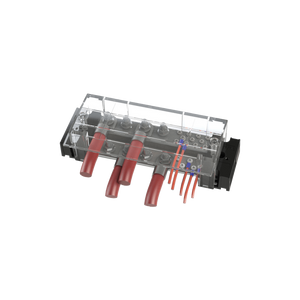

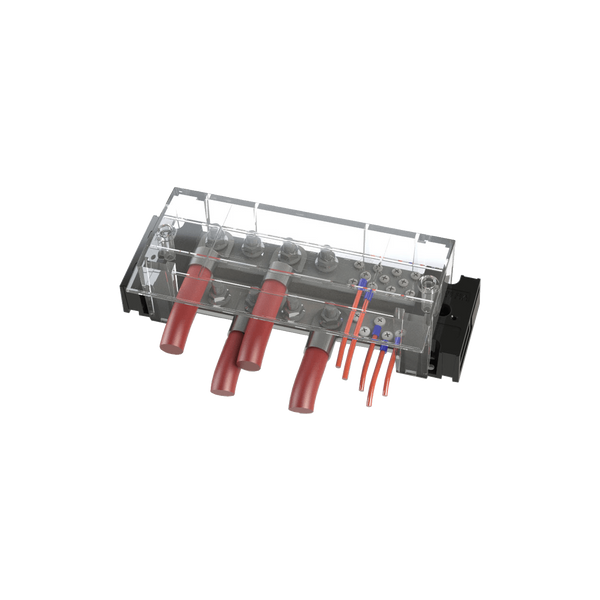

• Blue Sea Systems Sammelschiene PowerBar1000 1990
Blue Sea Systems

Busbar PowerBar1000 1990

Zuletzt aktualisiert:

Art.-Nr.: 700101990

€220,39
€220,39
Sale Sold out
Tax included. Shipping calculated at checkout.
Verfügbar – In 2–3 Werktagen bei Ihnen zu Hause

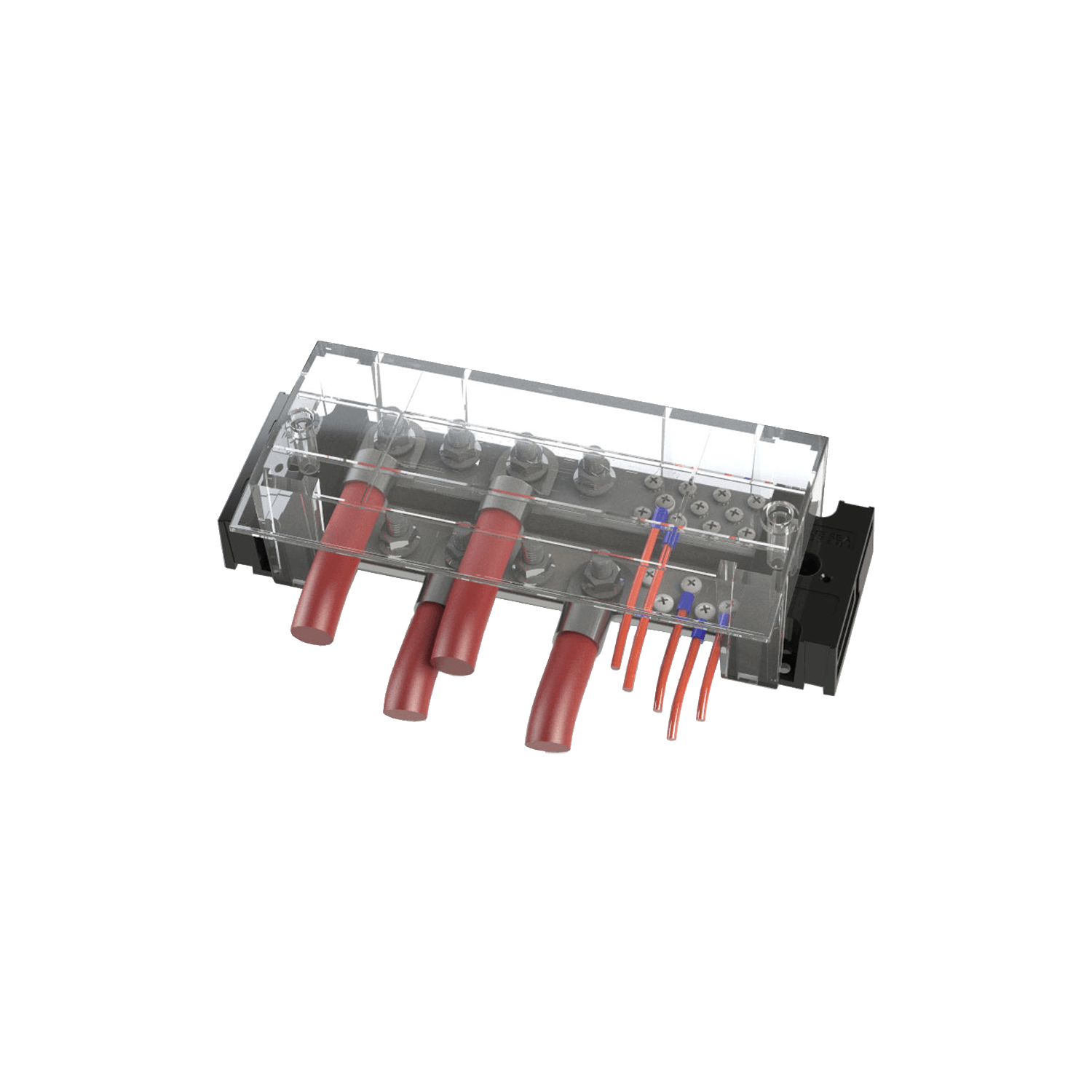

The PowerBar1000 1990 busbar (Blue Sea Systems BS 1990) is a high-load busbar made of tin-plated, high-purity electrolytic copper for 1000 A, serving as a central connection point for large and small conductors in complex on-board networks. The stepped busbar design with two connection levels ensures significantly higher connection density than conventional busbars.

Advantages

  • Tin-plated high-purity electrolytic copper for maximum conductivity
  • Stepped busbar design with two levels doubles the possible conductor density compared to classic busbars
  • Connection heights suitable for common fuse holder blocks – multiple fuse blocks can be directly attached without additional connecting cables
  • One-piece serrated flange nuts for secure main connections
  • Additional #8-32 stainless steel screws with fixed lock washers for smaller conductor cross-sections
  • Busbar can be shortened if space is limited
  • Bidirectional end caps allow multiple PowerBar1000 busbars to be ganged together
  • Plug-in insulating cover meets ABYC/USCG requirements, with recess for labeling

Technical Data & Compatibility

  • Continuous current: 1000 A
  • Max. operating voltage: 150 V AC / 48 V DC
  • 8 threaded studs 3/8"-16
  • 5 screw terminals #10-32 and 11 screw terminals #8-32
  • With cover (Cover 2730B)
  • Material: tin-plated electrolytic copper C11000
  • Mounting: #10 (M5) screws
  • SKU 700101990

What is the PowerBar1000 1990 suitable for?

The PowerBar1000 1990 is suitable for large, complex on-board networks where both main lines with 3/8" ring terminals and numerous smaller control and auxiliary lines are to be brought together at a single, clear collection point – for example, as a central positive or ground busbar with directly attached fuse blocks. If even higher demand arises, multiple PowerBar1000 busbars can be ganged together via the end caps.

For professional 1000 A power distribution with high connection density, the PowerBar1000 1990 is the ideal solution.
