• Blue Sea Systems Abzweigbolzenhalter ABH 2
Blue Sea Systems

Branch bolt holder ABH 2

Zuletzt aktualisiert:

Art.-Nr.: 700122151

€48,08
€48,08
Sale Sold out
Tax included. Shipping calculated at checkout.
Verfügbar – In 2–3 Werktagen bei Ihnen zu Hause

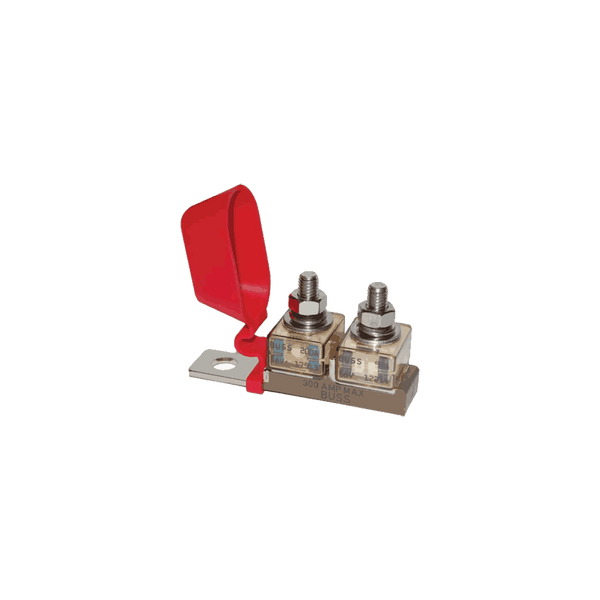

The ABH 2 is a 2-way branch bolt holder for the SHB bolt fuse (MRBF fuse) for protecting different conductor cross-sections on a common connection bolt. An insulating cover cap prevents short circuits at the connections.

  • Number of fuse positions: 2
  • Maximum operating voltage: 58 V DC
  • Maximum operating current: 300 A (when using 4/0 AWG cable)
  • Suitable SHB bolt fuses: 30 A to 300 A
  • Connection bolt: M8 (5/16"-18), mounting hole 3/8"
  • Protection class IP66 when used with Blue Sea Terminal (MRBF) fuses
  • Ignition protection according to ISO 8846 and SAE J1171 when used with MRBF fuses and a securely latched lid
  • SKU: 700122151

This allows two different conductor cross-sections to be protected independently of each other on one connection bolt with the ABH 2.
