The circuit distributors of the SafetyHub product family are used for distributing and protecting circuits from 1 to 200 amperes. The ignition-protected design allows installation in boats with gasoline engines, protection class IP66.
The use of the SafetyHub significantly reduces installation effort due to the considerably lower number of cable connections. The SafetyHub can be used as a main or sub-distribution unit.

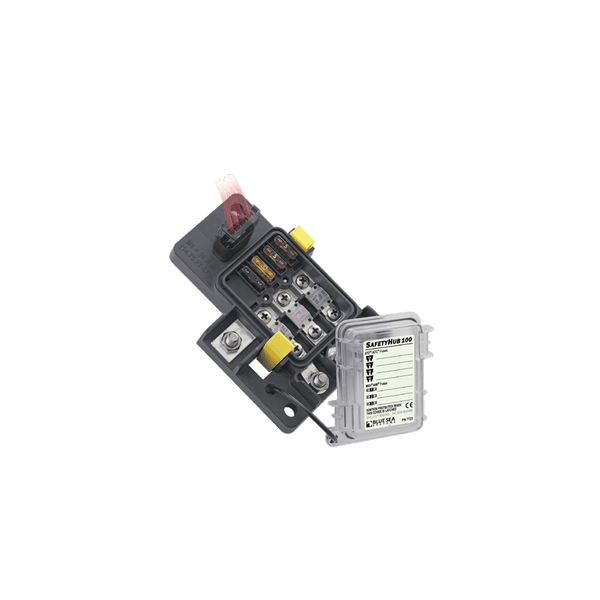

The SafetyHub 100 features a compact plug. This plug simplifies the connection of circuits protected by automotive blade fuses. The plug has a 30 cm long connection cable and is included in the scope of delivery.
- Three 30 A - 200 A MIDI fuses (type STM) for protecting high loads, e.g., main switchboards or winches
- Four 1 A - 30 A automotive blade fuses (type FSS) for small consumers, e.g., electronics or
lighting
- Transparent plastic cover, as protection against contact and moisture, protection class IP66
- Compact plug for safe, clear, and waterproof connection
- Total load capacity 300 A
- System voltage 12 V DC
- Required ring terminals M8
- Load capacity for circuits with MIDI fuses up to 200A, total 250 A
- Load capacity for circuits with automotive blade fuses 30 A each, total 50 A
- Protection class IP66
Delivery without fuses
Dimensions: L 146 x W 99 x H 56 mm
⚠️Safety data sheet can be found under Downloads!
Downloads
Deutsche Downloads
FAQ
Yes, this is possible. For this, the required fuse size per circuit must be specified when ordering the switch panel.
Yes, before each switchboard, a main fuse must be integrated into the supply line to the switchboard near the battery.
Yes, all common sensors used in the marine and automotive sectors can be connected.
