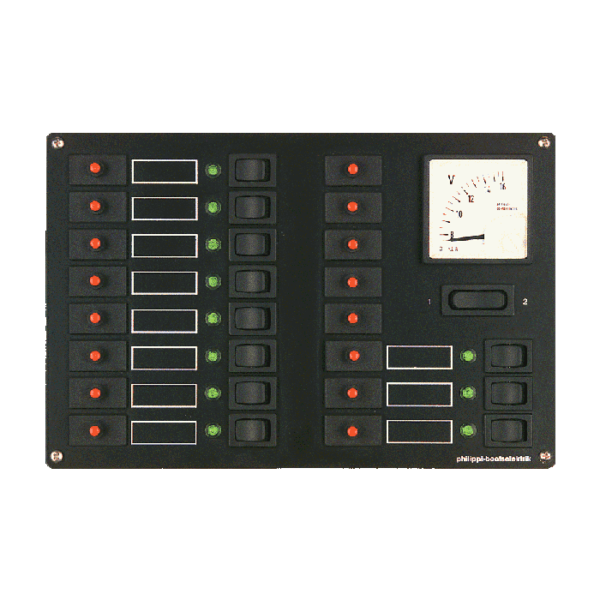

Circuit distributor with 11 circuits with thermal circuit breakers of the E-T-A 1140 series, LED display and rocker switches, rated current 8 A. In addition, 5 automatic circuit breakers for protecting loads that are not switched.
On request, 4A, 6A, 10A, 12A or 16A can also be used with the automatic circuit breakers.
Voltmeter with change-over switch, moving-coil instrument class 1.5 with change-over switch (1-0-2).
The scope of delivery includes a set of labels STKZ as well as black fixing screws.
The consumer supply cables are connected via 6.3 mm blade receptacles on the back of the circuit breakers.
The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear and safe mounting.
The installation cut-out can be chosen 10 mm smaller per edge than the panel dimensions (W 200 x H 125 mm).
Can be used for DC 12V or 24V.
Dimensions : W 220 x H 145 x D 70 mm
