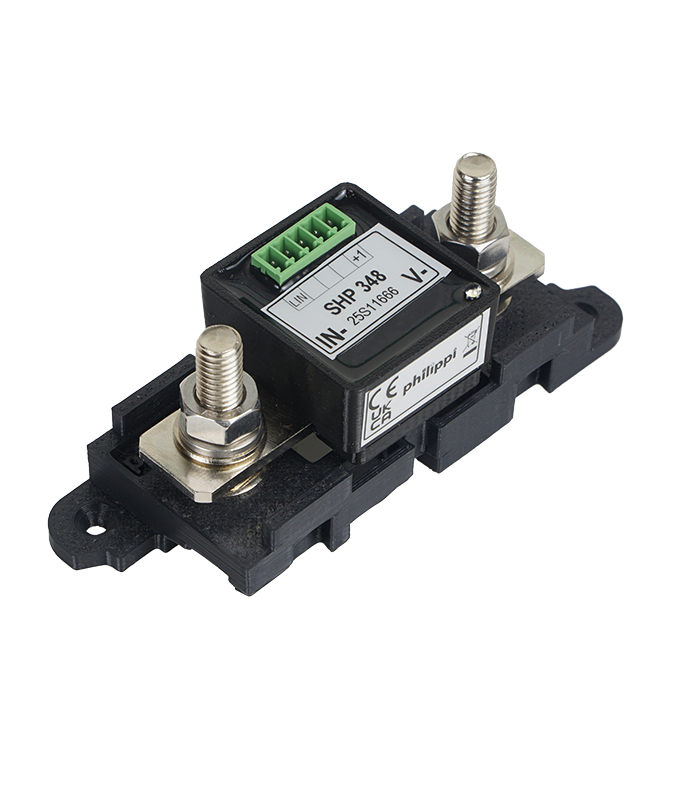

Digital battery management shunt for installation in the negative line of the house battery.
The SHE 348 shunt is compatible with the BTM and BLS monitors.
The shunt is powered via the consumer battery’s voltage measuring line.
Suitable for continuous charging or discharging currents up to 300 A and battery capacities up to 1000 Ah
Rated current: 300A, 600A 1min, 1500A 0,5 s
Consumption: 10 mA@12 V, 5 mA@24V
Operation voltage: DC 8-40V
Current range: 10 mA – 1500A
Connection: Bolts M8
Dimensions: L 118 x W 40 x H 65 mm
