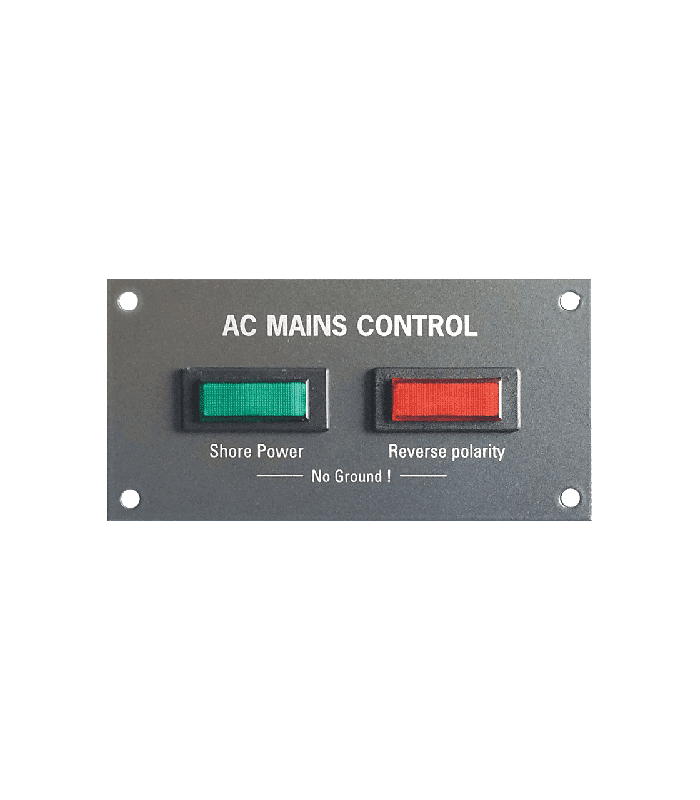

The LAR mains control panel shows the electrically correct connection of the AC on-board network to the AC shore network:
Green light: everything correctly connected, red light: phase (L) and neutral (N) are reversed.
Measuring fault current 1.4 mA, not suitable for AC mains without protective conductor, as fault detection is not possible here.
The connection of the consumer supply lines is made via flat plug sleeves 6.3mm on the rear side.
The panel is to be installed in such a way that the rear side is only accessible and covered with tools.
The installation cut-out can be selected smaller than the panel dimensions by 12 mm per edge (81 x 28.5 mm).
Dimensions: W 105 x H 52.5 x D 50 mm
