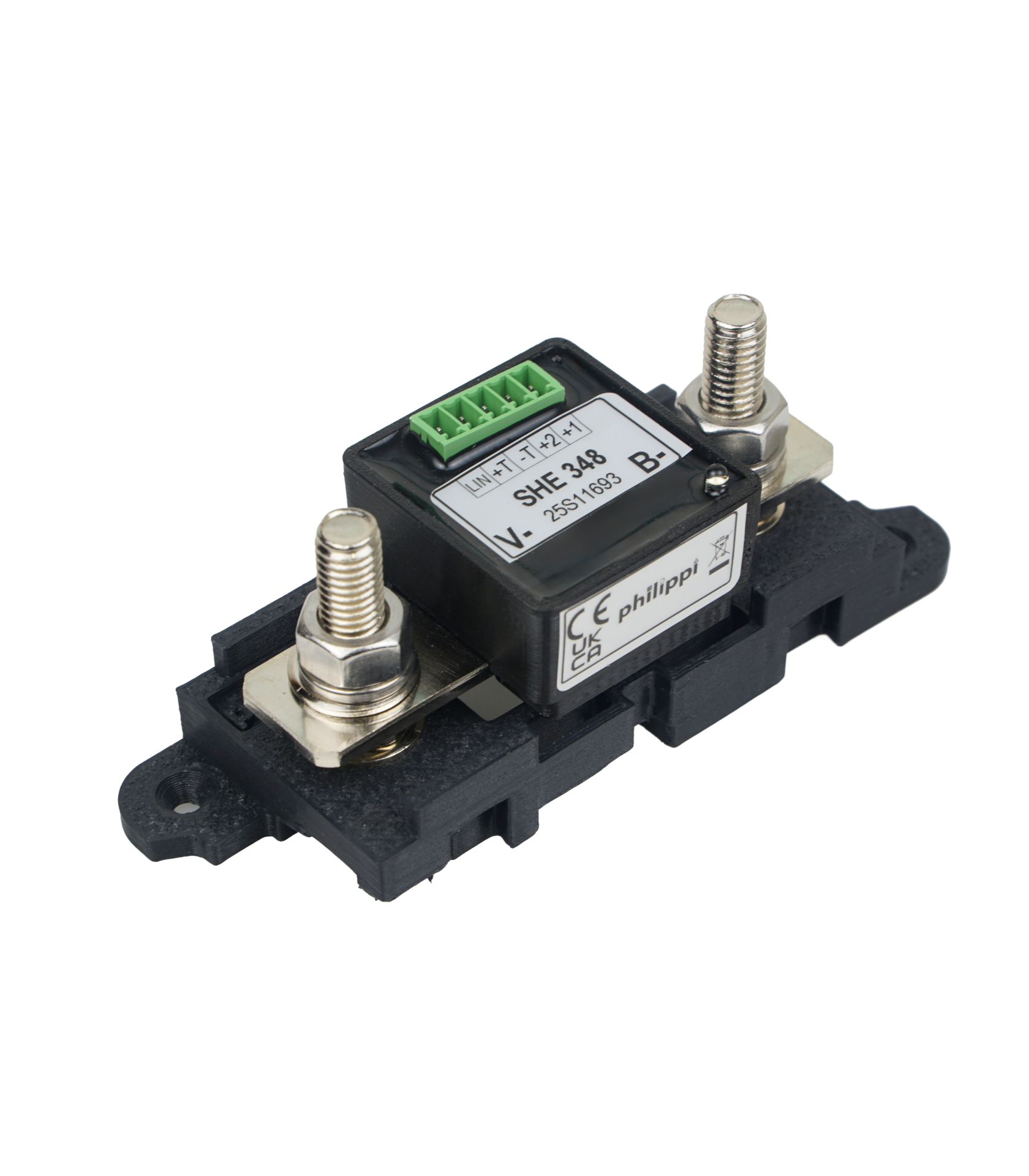

Battery Management Shunt SHE 348

Digital battery management shunt for installation in the negative line of the house battery.

The SHE 300 shunt is compatible with the BTM and BLS monitors.
The shunt is powered via the consumer battery’s voltage measuring line.

Suitable for continuous charging or discharging currents up to 300 A and battery capacities up to 1000 Ah

Rated current:         300A, 600A 1min, 1500A 0,5s
Consumption:          10 mA@12 V, 5 mA@24 V
Operation voltage:  DC 8-40 V
Current range:        10 mA – 1500 A
Connection:             Bolts M8
Dimensions:            L 118 x W 40 x H 65 mm
