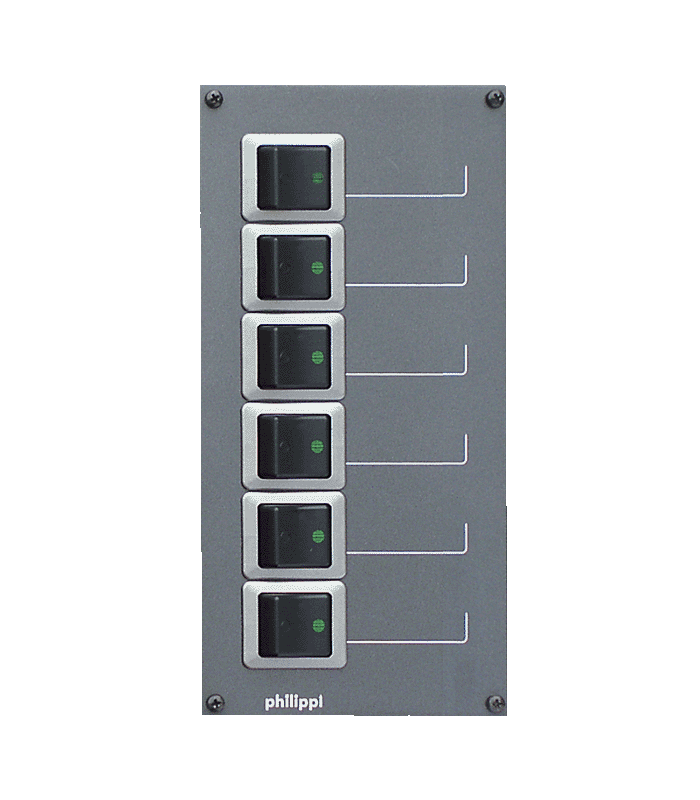

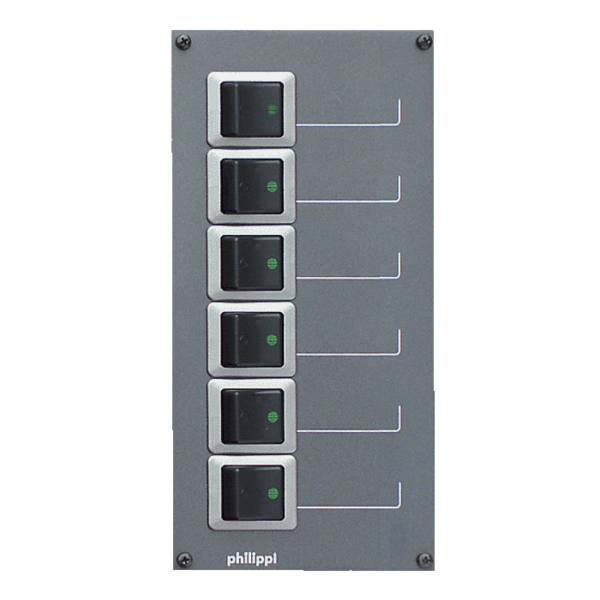

Circuit distributor with 6 circuits with thermal rocker circuit breakers, rated current 10A.
On request, 6A or 16A can also be used.
Included in delivery is a set of labeling SKZ (for boats) and black fixing screws.
A labeling set for vehicles: SKZ-MOBIL can also be supplied on request.
The consumer supply cables are connected via 6.3mm blade receptacles on the back of the rocker circuit breakers. The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear and safe installation.
The mounting cutout can be chosen smaller than the panel dimensions by 12 mm per edge (81 x 186 mm).
Applicable for DC 12V and 24V.
Dimensions: W 105 x H 210 x D 70 mm
For this purpose recommended terminal block type RKL 14.
