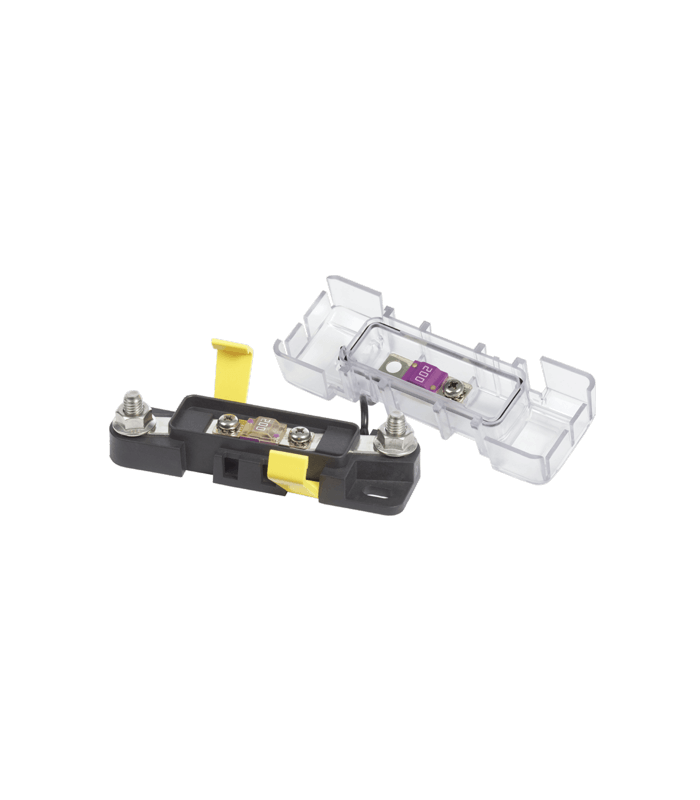

Fuse holder SHN for MIDI fuses (STM), with transparent plastic cover as protection against contact and moisture, protection class IP6.
To replace the fuse, it is not necessary to disconnect the connecting cables.
– The cover is secured against loss, there is space in the cover for a spare fuse
– The cover can be broken out to 3 sides for cable connection.
– For MIDI fuses STM from 30A to max. 200 A
– Connection bolt M8
– Maximum voltage: 32V DC
Supplied without fuse
Dimensions: L 125 x W 39 x H 41 mm
