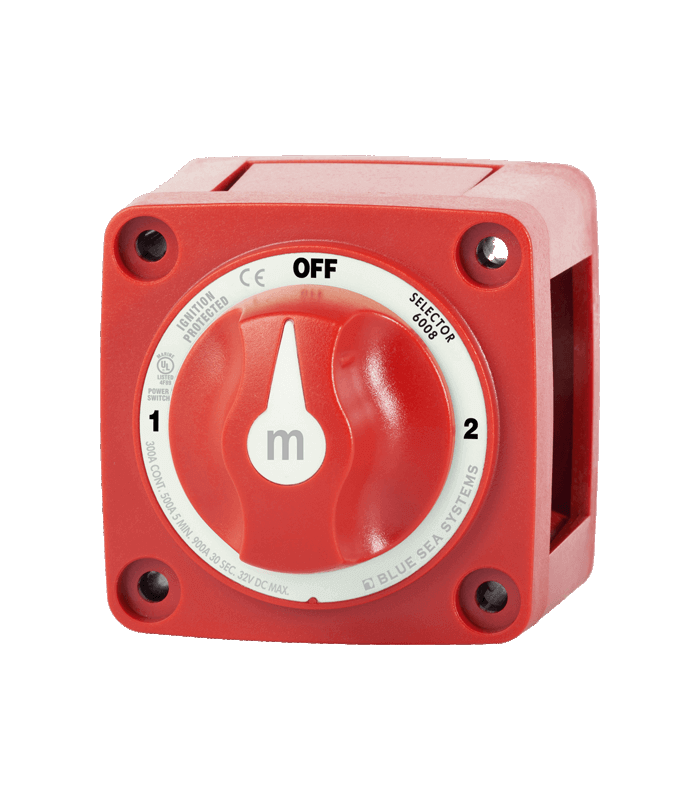

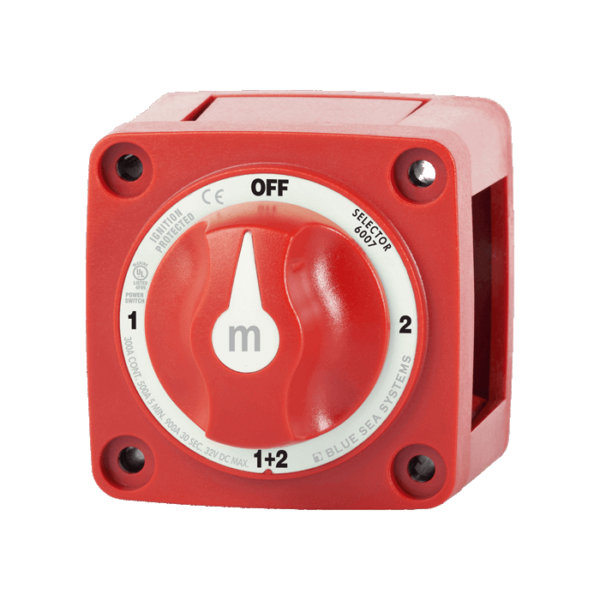

Manual battery switch BWS 303

Manual battery switch, which concurrently switches two isolated battery Banks. Various Installation options [build-in, build-on or panel-installation]

The battery main switches for universal installation,surface mounting or panel mounting.

Continous current: 300 A
Peak current: 900 A / 30 s
Operation voltage: max. 32 V DC
Connection: M10, lenght 22 mm, tinned copper, max. tightening torque 13 Nm
Abmessungen: L 72 x W 72 x H 55 mm
Mounting hole: Ø 59 mm for rear mounting, Ø 67 mm for front mounting
Battery master switch BHM for universal recessed, surface or panel mounting.
