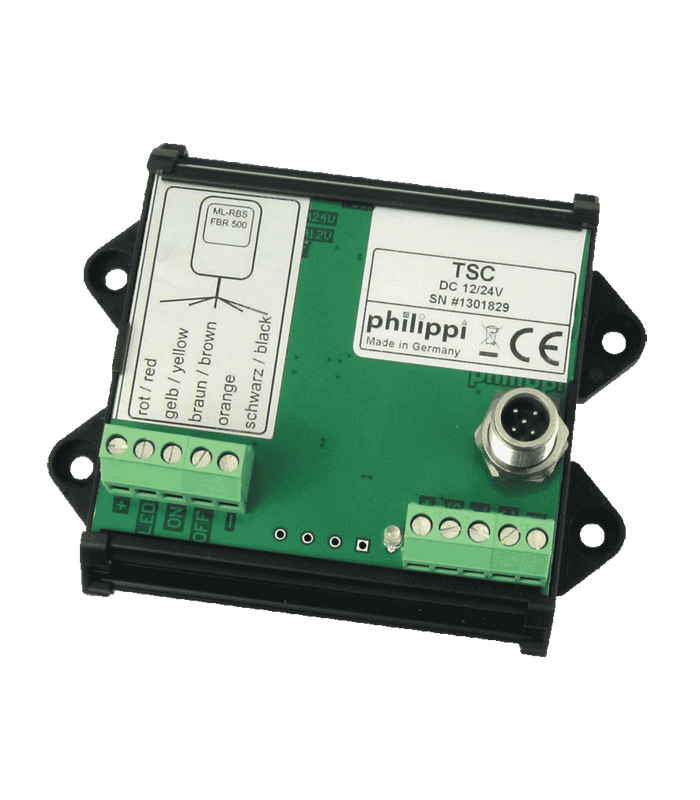

Interface TSC
135,00 €
incl. 19% VAT plus Shipping
Used to control an external battery disconnect switch.
Description
Interface for controlling an external battery disconnector 500A – FBR 500 (12 or 24V) with adjustable deep discharge protection function and overvoltage cut-off. Control via external control button or P-BUS. All settings can be adjusted on the system monitor. Delivery incl. M12-T cable. Please order FBR 500 separately!
Rated voltage: 12 + 24 V DC
Intrinsic current consumption: 2 mA
Dimensions: L 111 x W 90 x H 41 mm
Additional information
| Weight | 0,451 kg |
|---|---|
| Dimensions | 18 × 12 × 10 cm |
| Marken | Philippi |
| Voltage | DC12V, DC24V |
