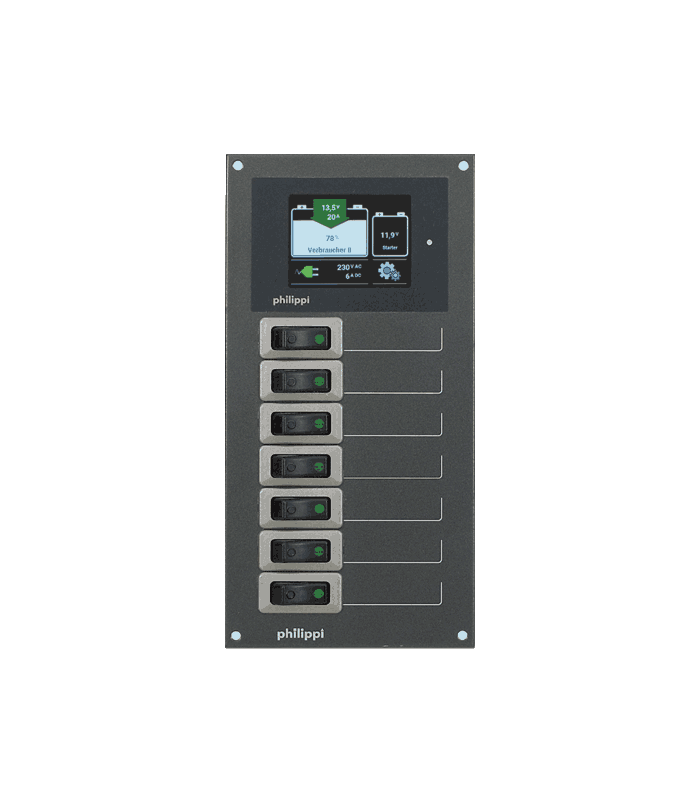

Distribution panel with 7 power circuits with thermal circuit breakers 10A and Battery Monitor BLS-Set.
On request, 6A or 16A can also be used.
The delivery includes a set of labels SKZ (for boats) and black fixing screws.
The consumer supply cables are connected via 6.3mm blade receptacles on the back of the rocker circuit breakers. The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear installation.
The mounting cutout can be chosen smaller than the panel dimensions by 12 mm per edge (186 x 186 mm).
Applicable for DC 12V and 24V.
Dimensions: W 105 x H 210 x D 70 mm
Suitable terminal blocks type RKL 16/4
