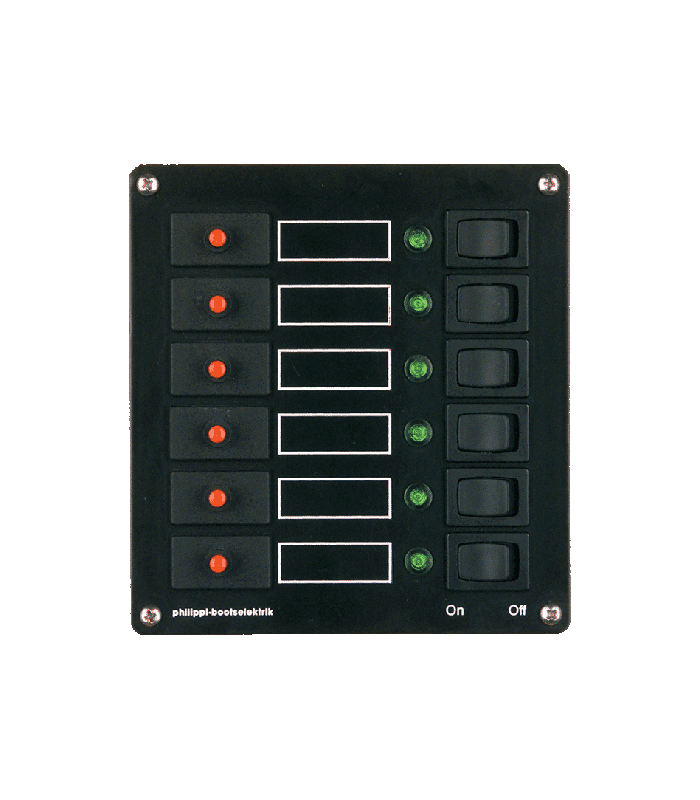

Panel STV 106
138,00 €
incl. 19% VAT plus Shipping
6 Stromkreise
SKU:
020001060
Categories: Distribution marine, Power Distribution, Series 100
Tags: STV 106, STV106
Description
Circuit distributor with 6 circuits with E-T-A 1140 series thermal circuit breakers, LED display and rocker switches, rated current 8A.
On request, 4A, 6A, 10A, 12A or 16A can also be used.
The delivery includes a set of labels STKZ and black fixing screws.
The consumer supply cables are connected via 6.3mm blade receptacles on the back of the circuit breakers.
The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear and safe mounting.
The mounting cutout can be chosen 10 mm smaller per edge than the panel dimensions (W 90 x H 97 mm).
Applicable for DC 12V and 24V.
Dimensions : W 110 x H 117 x D 70 mm
Additional information
Weight | 0,352 kg |
---|---|
Dimensions | 18 × 12 × 10 cm |
Marken | |
Voltage |
DC12V ,DC24V |
